GM GENUINE
20795120

第三方数据GM GENUINE : 20795120

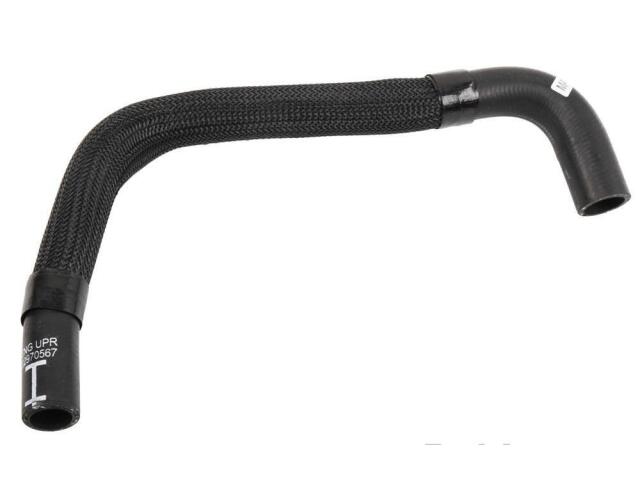

Heater Hose
GM GENUINE : 20795120

Centerline Length (IN): 17.74
Centerline Length (MM): 450.57
Clamps Included: No
Color: Black
Contains Spring: No
End 1 Inside Diameter (IN): 0.72
End 1 Inside Diameter (MM): 18.25
End 1 Outside Diameter (IN): 0.99
End 1 Outside Diameter (MM): 25.25
End 2 Inside Diameter (IN): 0.87
End 2 Inside Diameter (MM): 22
End 2 Outside Diameter (IN): 1.14
End 2 Outside Diameter (MM): 29
Hose Shape: Molded Assembly
Length Axis 1 (IN): 11.284
Length Axis 1 (MM): 286.62
Length Axis 2 (IN): 6.678
Length Axis 2 (MM): 169.62
Length Axis 3 (IN): 6.504
Length Axis 3 (mm): 165.2
Material: Rubber
Molded: Yes
Original Equipment Replacement: Yes
Wall Thickness (IN): 0.16
Wall Thickness (MM): 4

适用车型

SAAB (1)

CADILLAC (1)
