DORMAN
626711

第三方数据DORMAN : 626711

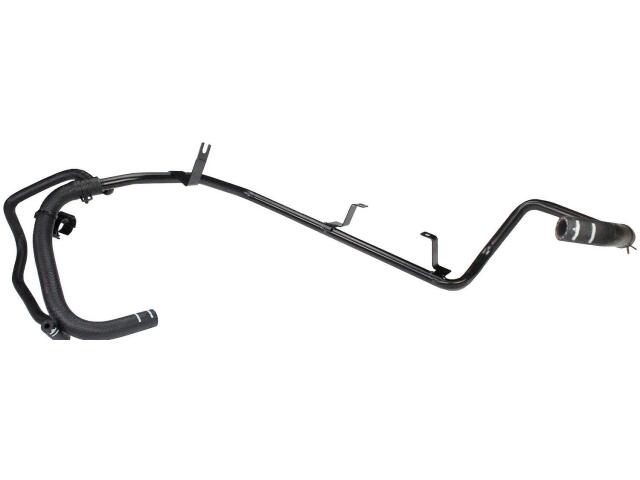

Heater Hose
DORMAN : 626711

Axis 1 Length (MM): 1525
Axis 2 Length (MM): 537
Branch Quantity: 2
Burst Pressure (PS): 75
Centerline Length (MM): 2062
Clamps Included: No
Contains Spring: No
Coolant Hose Heat Shield Included: No
Coolant Hose Type: Branched
End 1 Attachment Type: Hose
End 1 Inside Diameter (MM): 14.75
End 1 Type: Hose
End 2 Attachment Type: Hose
End 2 Inside Diameter (MM): 7
End 2 Type: Hose
End 3 Attachment Type: Hose
End 3 Inside Diameter (MM): 16.75
Heat Shield Included: No
Hose Attachment End 1: Flared Tube
Hose Attachment End 2: Flared Tube
Hose End (1) Outside Diameter (IN): 21.75 MM
Hose End (2) Outside Diameter (IN): 14 MM
Hose End (3) Outside Diameter (IN): 23.75 MM
Hose Material: EPDM; Metal; Plastic
Hose Outside Diameter: 16
Hose Overall Length (IN): 1525 MM
Hose Quantity: 1
Hose Shape: Molded Assembly
Inside Diameter: 14 MM
Length: 1525 MM
Maximum Bend Angle: 115
Maximum Working Pressure (PS): 100
Modular: Branch
Modular Components Included: Yes
Molded: Yes
Mounting Bracket Included: Yes
Outside Diameter: 16 mm
Package Contents: Heater Hose Assembly
Protective Sleeve Attached: No
Protective Sleeve Included: No
Thermostatically Controlled: No

适用车型

RAM (3)

OE号码

品牌	号码
OE	626-71*

品牌	号码
OE	52014853A*
