GM GENUINE
12560115

第三方数据GM GENUINE : 12560115

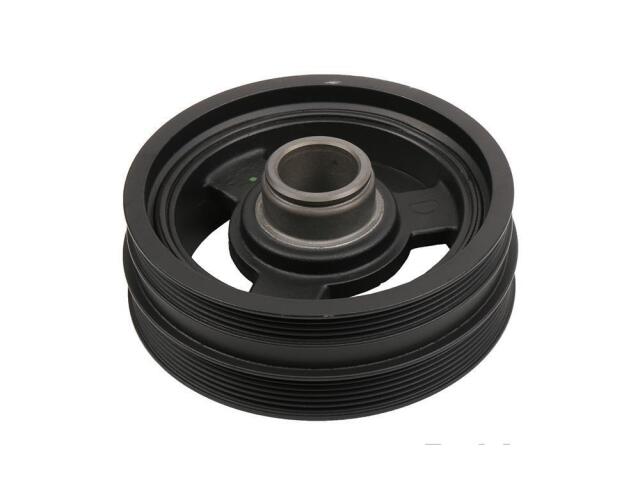

Harmonic Balancer
GM GENUINE : 12560115

Bolt And Washer Included: No
Center Bolt Length (in): 4.06
Center Bolt Length (mm): 103
Center Bolt Thread Diameter (IN): 0.63
Center Bolt Thread Diameter (MM): 16
Center Bolt Thread Type: Coarse
Center Bore Diameter (IN): 1.5in
Center Bore Diameter (MM): 38mm
Depth (IN): 1.81
Depth (MM): 46
Drive Belt Type: Serpentine
Inside Diameter (IN): 1.5
Inside Diameter (MM): 38
Keyway Type: No
Mounting Hole Quantity: 1
Outside Diameter (IN): 7.52
Outside Diameter (MM): 191
Pulley Groove Quantity: 10

适用车型

CADILLAC (1)
