第三方数据MERCURY : PBU1116SS10

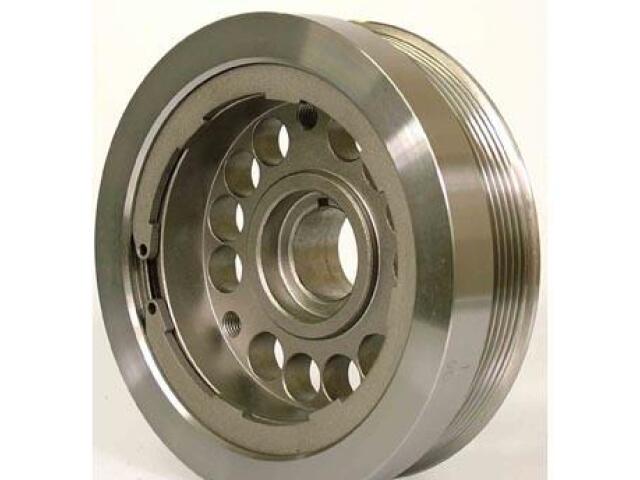

Harmonic Balancer
MERCURY : PBU1116SS10

Bolt Hole Quantity: 3
Counterweight Balance: Neutral, no counterweight
Crank Bore (IN): 1.249
Crank Bore (MM): 31.71
Crank Trigger/Exciter Plate: No
Hardware Included: No
Installation Instructions Included: No
Nose Outside Diameter (IN): 1.876
Nose Outside Diameter (MM): 47.65
Number of Integrated Pulleys: 1
Outer Ring Material: Steel
Overall Outside Diameter (IN): 6.339
Overall Outside Diameter (MM): 161.00
Overall Width (IN): 2.323
Overall Width (MM): 59.00
Pulley 1 Number Of Grooves (MM): 6
Pulley 1 Outside Diameter (IN): 5.938
Pulley 1 Outside Diameter (MM): 150.800
Pulley 1 Type: Serpentine
Ring Width (MM): 46.89
Ring Width (in): 1.847
Timing Marks: Yes
Woodruff Key Included: No

适用车型

FORD (5)

LINCOLN (2)
