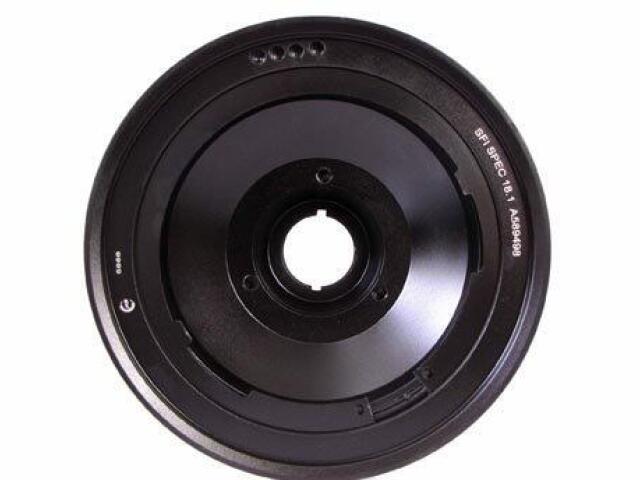

Harmonic Balancer
MERCURY : PBO81190SC10

Bolt Hole Quantity: 9
Counterweight Balance: Neutral, no counterweight
Crank Bore (IN): 1.481
Crank Bore (MM): 37.60
Crank Trigger/Exciter Plate: No
Hardware Included: No
Installation Instructions Included: Yes
Nose Outside Diameter (IN): 2.126
Nose Outside Diameter (MM): 54.00
Number of Integrated Pulleys: 2
Outer Ring Material: Steel
Overall Outside Diameter (IN): 8.426
Overall Outside Diameter (MM): 214.00
Overall Width (IN): 4.626
Overall Width (MM): 117.50
Pulley 1 Number Of Grooves (MM): 4
Pulley 1 Outside Diameter (IN): 7.528
Pulley 1 Outside Diameter (MM): 191.200
Pulley 1 Type: Serpentine
Pulley 2 Number Of Grooves (MM): 8
Pulley 2 Outside Diameter (IN): 8.268
Pulley 2 Outside Diameter (MM): 210.000
Pulley 2 Type: Serpentine
Ring Width (MM): 65.23
Ring Width (in): 2.569
Timing Marks: Yes
Woodruff Key Included: No

适用车型

ISUZU (1)

SAAB (1)

BUICK (1)

CADILLAC (1)

CHEVROLET (21)

EXPRESS 2500 (3)

4.8L V8 (13)

5.3L V8 (1)

6.0L V8 (16)

EXPRESS 3500 (2)

4.8L V8 (13)

6.0L V8 (16)

SILVERADO 1500 (6)

4.8L V8 (9)

5.3L V8 (9)

5.3L V8 ELECTRIC/GAS (2)

6.0L V8 (5)

6.0L V8 ELECTRIC/GAS (5)

6.2L V8 (5)

SILVERADO 1500 CLASSIC (4)

TAHOE (4)

4.8L V8 (5)

5.3L V8 (10)

6.0L V8 ELECTRIC/GAS (6)

6.2L V8 (2)

AVALANCHE (2)

AVALANCHE 1500 (1)

COLORADO (1)

EXPRESS 1500 (1)

SUBURBAN 1500 (2)

TRAILBLAZER (2)

EXPRESS 4500 (1)

LCF (1)

SILVERADO 2500 (1)

SILVERADO 2500 CLASSIC (1)

SILVERADO 3500 (1)

SILVERADO 3500 CLASSIC (1)

SSR (1)

SUBURBAN (1)

SUBURBAN 2500 (1)

CAMARO (1)

HUMMER (3)

GMC (15)

SAVANA 2500 (3)

4.8L V8 (13)

5.3L V8 (1)

6.0L V8 (16)

SAVANA 3500 (2)

4.8L V8 (13)

6.0L V8 (16)

SIERRA 1500 (6)

4.8L V8 (9)

5.3L V8 (9)

5.3L V8 ELECTRIC/GAS (2)

6.0L V8 (5)

6.0L V8 ELECTRIC/GAS (5)

6.2L V8 (7)

SIERRA 1500 CLASSIC (4)

YUKON (5)

4.8L V8 (5)

5.3L V8 (10)

6.0L V8 (2)

6.0L V8 ELECTRIC/GAS (6)

6.2L V8 (8)

CANYON (1)

ENVOY (1)

SAVANA 1500 (1)

YUKON XL 1500 (3)

5.3L V8 (10)

6.0L V8 (5)

6.2L V8 (8)

SAVANA 4500 (1)

SIERRA 2500 (1)

SIERRA 2500 CLASSIC (1)

SIERRA 3500 (1)

SIERRA 3500 CLASSIC (1)

YUKON XL 2500 (1)
