MERCURY
PB1800N

第三方数据MERCURY : PB1800N

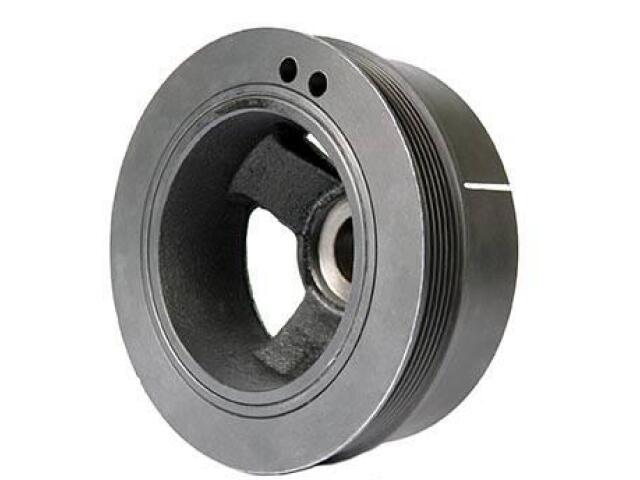

Harmonic Balancer
MERCURY : PB1800N

Counterweight Balance: Neutral, no counterweight
Crank Bore (IN): 1.298
Crank Bore (MM): 32.95
Crank Trigger/Exciter Plate: No
Hardware Included: No
Installation Instructions Included: No
Nose Outside Diameter (IN): 1.812
Nose Outside Diameter (MM): 46.00
Number of Integrated Pulleys: 1
Outer Ring Material: Cast Iron
Overall Outside Diameter (IN): 7.205
Overall Outside Diameter (MM): 183.00
Overall Width (IN): 5.197
Overall Width (MM): 132.00
Pulley 1 Number Of Grooves (MM): 6
Pulley 1 Outside Diameter (IN): 6.989
Pulley 1 Outside Diameter (MM): 177.50
Pulley 1 Type: Serpentine
Ring Width (MM): 37.00
Ring Width (in): 1.457
Timing Marks: Yes
Woodruff Key Included: No

适用车型

CHRYSLER (1)

JEEP (2)

DODGE (3)

RAM (2)
