MERCURY
PB1792N

第三方数据MERCURY : PB1792N

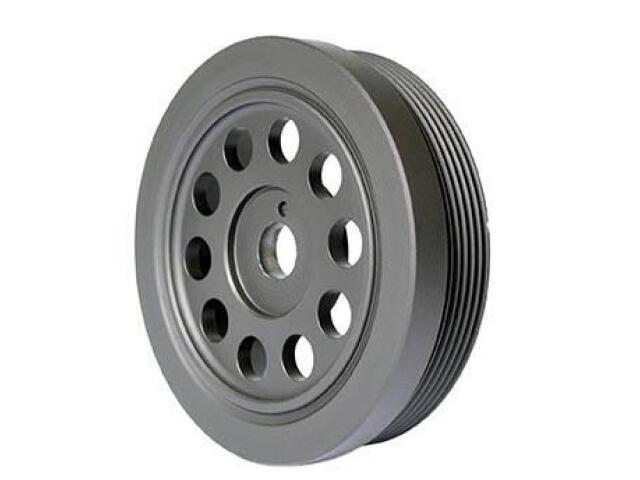

Harmonic Balancer
MERCURY : PB1792N

Counterweight Balance: Neutral, no counterweight
Crank Bore (IN): 0.788
Crank Bore (MM): 20.00
Crank Trigger/Exciter Plate: No
Hardware Included: No
Installation Instructions Included: No
Nose Outside Diameter (MM): 0.00
Number of Integrated Pulleys: 1
Outer Ring Material: Cast Iron
Overall Outside Diameter (IN): 5.825
Overall Outside Diameter (MM): 147.93
Overall Width (IN): 1.550
Overall Width (MM): 39.37
Pulley 1 Number Of Grooves (MM): 6
Pulley 1 Outside Diameter (IN): 5.630
Pulley 1 Outside Diameter (MM): 143.00
Pulley 1 Type: Serpentine
Ring Width (MM): 39.37
Ring Width (in): 1.550
Timing Marks: Yes
Woodruff Key Included: No

适用车型

SUBARU (7)

BRZ (1)

IMPREZA (1)

XV CROSSTREK (1)

FORESTER (3)

WRX (1)

LEGACY (2)

OUTBACK (1)

TOYOTA (1)

SCION (1)
