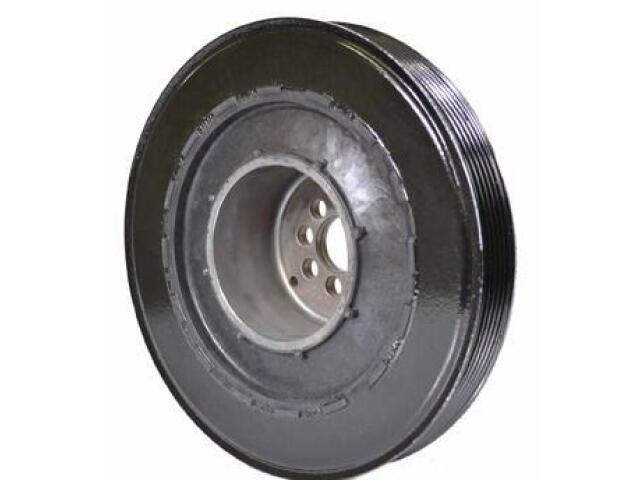

Harmonic Balancer
MERCURY : PB1769N

Bolt Hole Quantity: 8
Counterweight Balance: Neutral, no counterweight
Crank Bore (IN): 0.941
Crank Bore (MM): 23.90
Crank Trigger/Exciter Plate: No
Hardware Included: No
Installation Instructions Included: No
Nose Outside Diameter (MM): 0.00
Number of Integrated Pulleys: 1
Outer Ring Material: Cast Iron
Overall Outside Diameter (IN): 7.565
Overall Outside Diameter (MM): 192.15
Overall Width (IN): 1.898
Overall Width (MM): 48.20
Pulley 1 Number Of Grooves (MM): 6
Pulley 1 Outside Diameter (IN): 7.426
Pulley 1 Outside Diameter (MM): 188.60
Pulley 1 Type: Serpentine
Ring Width (MM): 38.75
Ring Width (in): 1.526
Timing Marks: No
Woodruff Key Included: No

适用车型

VOLKSWAGEN (1)

AUDI (2)
