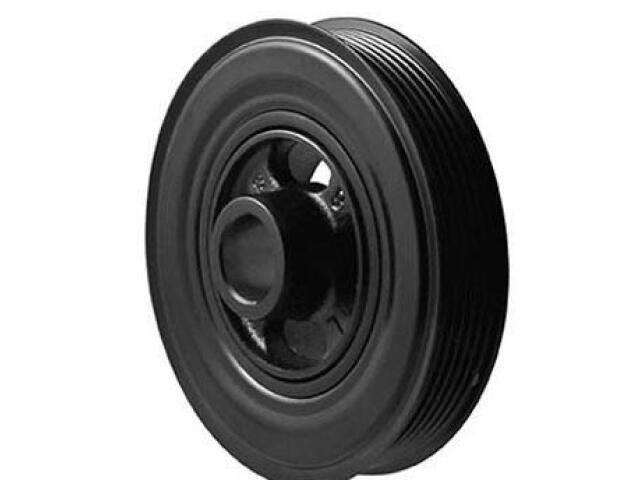

Harmonic Balancer
MERCURY : PB1755N

Counterweight Balance: Neutral, no counterweight
Crank Bore (IN): 0.985
Crank Bore (MM): 25.00
Crank Trigger/Exciter Plate: No
Hardware Included: No
Installation Instructions Included: No
Nose Outside Diameter (IN): 1.441
Nose Outside Diameter (MM): 36.60
Number of Integrated Pulleys: 1
Outer Ring Material: Steel
Overall Outside Diameter (IN): 5.438
Overall Outside Diameter (MM): 138.10
Overall Width (IN): 1.910
Overall Width (MM): 48.50
Pulley 1 Number Of Grooves (MM): 6
Pulley 1 Outside Diameter (IN): 5.162
Pulley 1 Outside Diameter (MM): 131.10
Pulley 1 Type: Serpentine
Ring Width (MM): 26.90
Ring Width (in): 1.060
Timing Marks: No
Woodruff Key Included: No

适用车型

FORD (1)
