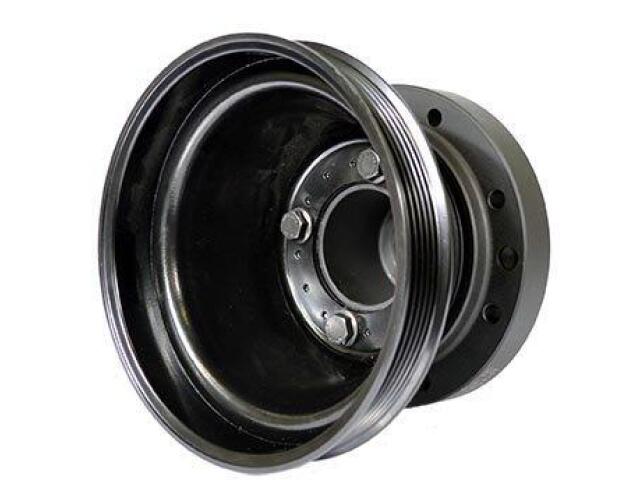

Harmonic Balancer
MERCURY : PB1727N

Bolt Hole Quantity: 4
Counterweight Balance: Neutral, no counterweight
Crank Bore (IN): 1.375
Crank Bore (MM): 34.90
Crank Trigger/Exciter Plate: Yes
Hardware Included: No
Installation Instructions Included: No
Nose Outside Diameter (IN): 1.875
Nose Outside Diameter (MM): 47.60
Number of Integrated Pulleys: 1
Outer Ring Material: Cast Iron
Overall Outside Diameter (IN): 7.048
Overall Outside Diameter (MM): 179.00
Overall Width (IN): 7.107
Overall Width (MM): 180.50
Pulley 1 Number Of Grooves (MM): 6
Pulley 1 Outside Diameter (IN): 6.780
Pulley 1 Outside Diameter (MM): 172.20
Pulley 1 Type: Serpentine
Ring Width (MM): 32.00
Ring Width (in): 1.260
Timing Marks: Yes
Woodruff Key Included: No
