MERCURY
PB1720N

第三方数据MERCURY : PB1720N

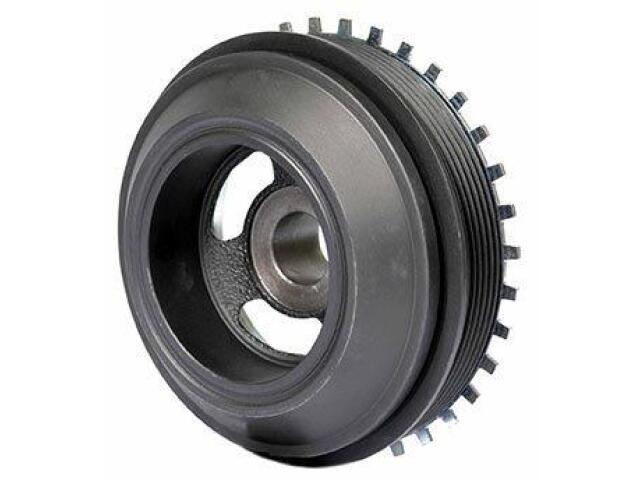

Harmonic Balancer
MERCURY : PB1720N

Counterweight Balance: Neutral, no counterweight
Crank Bore (IN): 1.044
Crank Bore (MM): 26.50
Crank Trigger/Exciter Plate: Yes
Hardware Included: No
Installation Instructions Included: No
Nose Outside Diameter (IN): 1.457
Nose Outside Diameter (MM): 37.00
Number of Integrated Pulleys: 1
Outer Ring Material: Cast Iron
Overall Outside Diameter (IN): 6.103
Overall Outside Diameter (MM): 155.00
Overall Width (IN): 2.520
Overall Width (MM): 64.00
Pulley 1 Number Of Grooves (MM): 6
Pulley 1 Outside Diameter (IN): 5.906
Pulley 1 Outside Diameter (MM): 150.00
Pulley 1 Type: Serpentine
Ring Width (MM): 29.00
Ring Width (in): 1.142
Timing Marks: No
Woodruff Key Included: No

适用车型

FORD (2)

MAZDA (1)

LINCOLN (1)

MERCURY (2)
