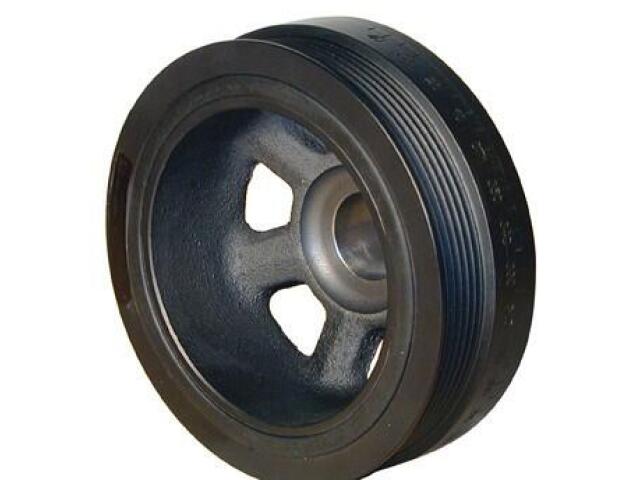

Harmonic Balancer
MERCURY : PB1700N

Counterweight Balance: Neutral, no counterweight
Crank Bore (IN): 1.262
Crank Bore (MM): 32.05
Crank Trigger/Exciter Plate: No
Hardware Included: No
Installation Instructions Included: No
Nose Outside Diameter (IN): 1.772
Nose Outside Diameter (MM): 45
Number of Integrated Pulleys: 1
Outer Ring Material: Cast Iron
Overall Outside Diameter (IN): 6.308
Overall Outside Diameter (MM): 160.2
Overall Width (IN): 3.229
Overall Width (MM): 82.0
Pulley 1 Number Of Grooves (MM): 6
Pulley 1 Outside Diameter (IN): 5.985
Pulley 1 Outside Diameter (MM): 152.0
Pulley 1 Type: Serpentine
Ring Width (MM): 49.77
Ring Width (in): 1.960
Timing Marks: Yes
Woodruff Key Included: No

适用车型

CHRYSLER (1)

MERCEDES-BENZ (16)

C240 (1)

C320 (1)

CLK320 (1)

E320 (1)

ML350 (1)

S350 (1)

S430 (1)

CL500 (1)

CLK500 (1)

CLS500 (1)

E500 (1)

G500 (1)

ML500 (1)

R500 (1)

S500 (1)

SL500 (1)

OE号码

品牌	号码
OE	PB1700N:*

品牌	号码
OE	PB1768*
