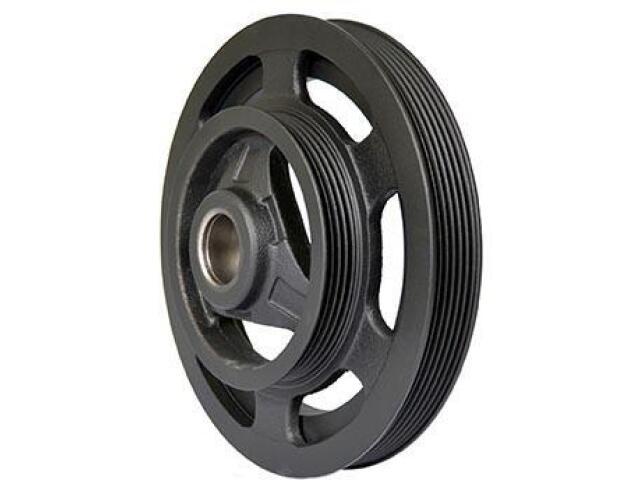

Harmonic Balancer
MERCURY : PB1676N

Counterweight Balance: Neutral, no counterweight
Crank Bore (IN): 1.189
Crank Bore (MM): 30.2
Crank Trigger/Exciter Plate: No
Hardware Included: No
Installation Instructions Included: No
Nose Outside Diameter (IN): 1.969
Nose Outside Diameter (MM): 50
Number of Integrated Pulleys: 2
Outer Ring Material: Steel
Overall Outside Diameter (IN): 7.914
Overall Outside Diameter (MM): 201
Overall Width (IN): 2.166
Overall Width (MM): 55
Pulley 1 Number of Grooves: 6
Pulley 1 Outside Diameter (IN): 7.756
Pulley 1 Outside Diameter (MM): 197
Pulley 1 Type: Serpentine
Pulley 2 Number of Grooves: 4
Pulley 2 Outside Diameter (IN): 4.607
Pulley 2 Outside Diameter (MM): 117
Pulley 2 Type: Serpentine
Ring Width (MM): 27
Ring Width (in): 1.063
Timing Marks: No
Woodruff Key Included: No

适用车型

CHRYSLER (1)

DODGE (1)
