第三方数据MERCURY : PB1648N

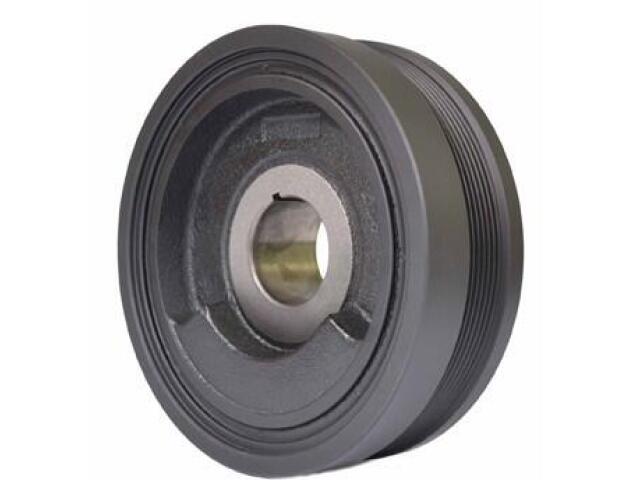

Harmonic Balancer
MERCURY : PB1648N

Counterweight Balance: Hub weighted
Crank Bore (IN): 1.930
Crank Bore (MM): 49.01
Crank Trigger/Exciter Plate: No
Installation Instructions Included: No
Number of Integrated Pulleys: 1
Outer Ring Material: Cast Iron
Overall Outside Diameter (IN): 7.796
Overall Outside Diameter (MM): 198
Overall Width (IN): 2.455
Overall Width (MM): 62.35
Pulley 1 Number Of Grooves (MM): 6
Pulley 1 Outside Diameter (IN): 7.560
Pulley 1 Outside Diameter (MM): 192
Pulley 1 Type: Serpentine
Ring Width (MM): 62.35
Ring Width (in): 2.455
Timing Marks: Yes
Woodruff Key Included: No

适用车型

CHEVROLET (2)

GMC (2)
