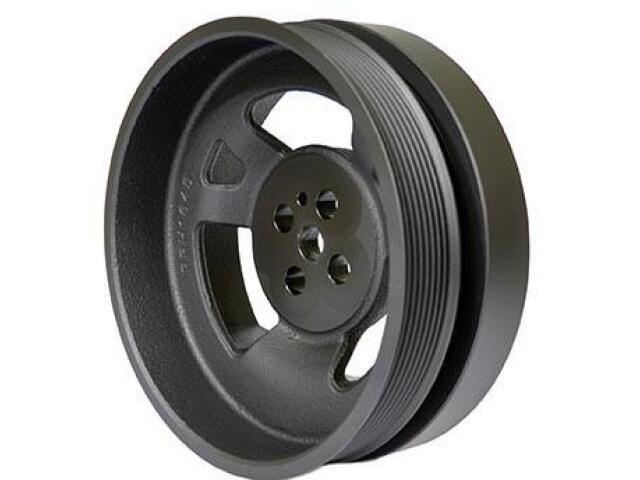

Harmonic Balancer
MERCURY : PB1645N

Bolt Hole Quantity: 4
Counterweight Balance: Hub weighted
Crank Bore (IN): 2.520
Crank Bore (MM): 64.00
Crank Trigger/Exciter Plate: No
Hardware Included: No
Installation Instructions Included: No
Nose Outside Diameter (MM): 0.00
Number of Integrated Pulleys: 1
Outer Ring Material: Cast Iron
Overall Outside Diameter (IN): 8.189
Overall Outside Diameter (MM): 208.00
Overall Width (IN): 3.071
Overall Width (MM): 78.00
Pulley 1 Number Of Grooves (MM): 8
Pulley 1 Outside Diameter (IN): 7.796
Pulley 1 Outside Diameter (MM): 198.00
Pulley 1 Type: Serpentine
Ring Width (MM): 78.00
Ring Width (in): 3.071
Timing Marks: No
Woodruff Key Included: No

适用车型

FORD (6)

F-250 SUPER DUTY (1)

F-350 SUPER DUTY (1)

F-450 SUPER DUTY (1)

F-550 SUPER DUTY (1)

F-650 (1)

F-750 (1)
