第三方数据MERCURY : PB1638N

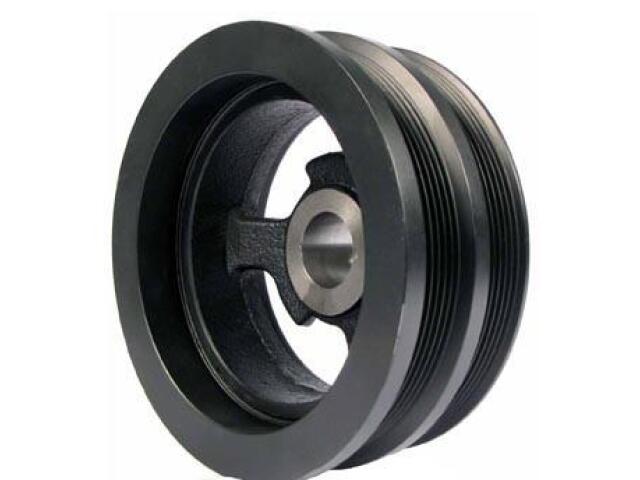

Harmonic Balancer
MERCURY : PB1638N

Counterweight Balance: Neutral, no counterweight
Crank Bore (IN): 1.249
Crank Bore (MM): 31.70
Crank Trigger/Exciter Plate: No
Hardware Included: No
Installation Instructions Included: No
Nose Outside Diameter (IN): 1.880
Nose Outside Diameter (MM): 47.75
Number of Integrated Pulleys: 2
Outer Ring Material: Cast Iron
Overall Outside Diameter (IN): 7.028
Overall Outside Diameter (MM): 178.5
Overall Width (IN): 3.532
Overall Width (MM): 89.70
Pulley 1 Number Of Grooves (MM): 6
Pulley 1 Type: Serpentine
Pulley 2 Type: Serpentine
Ring Width (MM): 72
Ring Width (in): 2.835
Timing Marks: No
Woodruff Key Included: No

适用车型

FORD (2)
