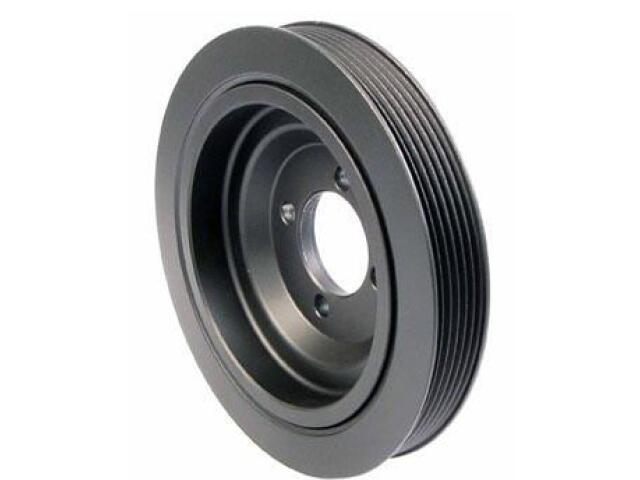

Harmonic Balancer
MERCURY : PB1588N

Bolt Hole Quantity: 4
Counterweight Balance: Neutral, no counterweight
Crank Bore (IN): 1.735
Crank Bore (MM): 44.05
Crank Trigger/Exciter Plate: No
Hardware Included: No
Installation Instructions Included: No
Nose Outside Diameter (MM): 0.00
Number of Integrated Pulleys: 1
Outer Ring Material: Cast Iron
Overall Outside Diameter (IN): 6.615
Overall Outside Diameter (MM): 168.00
Overall Width (IN): 1.497
Overall Width (MM): 38.00
Pulley 1 Number Of Grooves (MM): 6
Pulley 1 Outside Diameter (IN): 6.457
Pulley 1 Outside Diameter (MM): 164.000
Pulley 1 Type: Serpentine
Ring Width (MM): 25.98
Ring Width (in): 1.023
Timing Marks: Yes
Woodruff Key Included: No

适用车型

MITSUBISHI (4)
