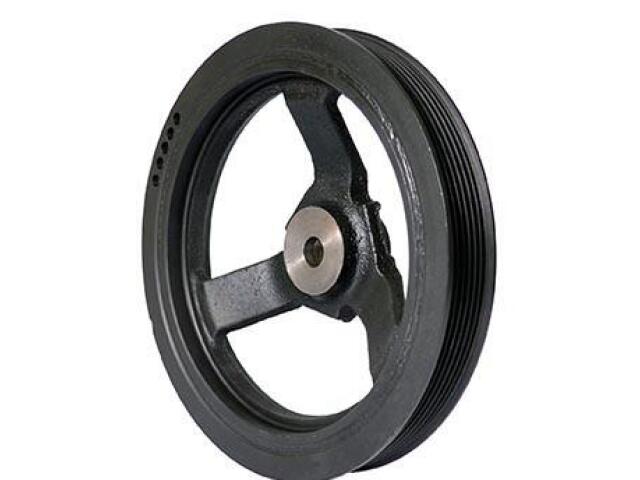

Harmonic Balancer
MERCURY : PB1569N

Counterweight Balance: Neutral, no counterweight
Crank Bore (IN): 1.115
Crank Bore (MM): 28.3
Crank Trigger/Exciter Plate: No
Hardware Included: No
Installation Instructions Included: No
Number of Integrated Pulleys: 1
Outer Ring Material: Cast Iron
Overall Outside Diameter (IN): 7.780
Overall Outside Diameter (MM): 197.6
Overall Width (IN): 2.146
Overall Width (MM): 54.5
Pulley 1 Number Of Grooves (MM): 6
Pulley 1 Outside Diameter (IN): 7.619
Pulley 1 Outside Diameter (MM): 193.5
Pulley 1 Type: Serpentine
Ring Width (MM): 29
Ring Width (in): 1.142
Timing Marks: No
Woodruff Key Included: No

适用车型

CHRYSLER (1)
