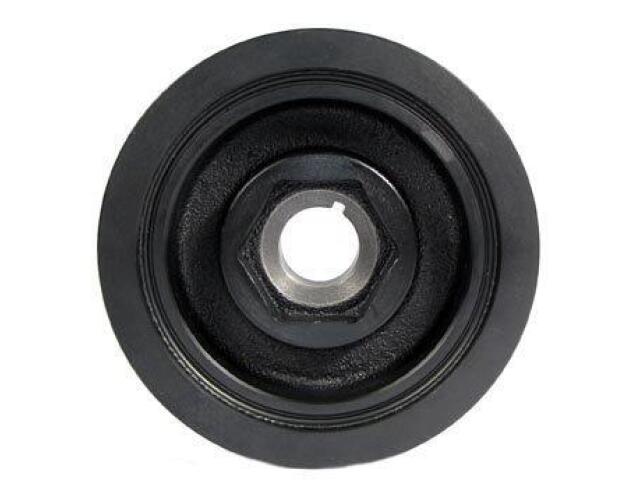

Harmonic Balancer
MERCURY : PB1567N

Counterweight Balance: Neutral, no counterweight
Crank Bore (IN): 1.182
Crank Bore (MM): 30.00
Crank Trigger/Exciter Plate: No
Hardware Included: No
Installation Instructions Included: No
Nose Outside Diameter (IN): 1.692
Nose Outside Diameter (MM): 42.97
Number of Integrated Pulleys: 1
Outer Ring Material: Grey Iron
Overall Outside Diameter (IN): 6.161
Overall Outside Diameter (MM): 156.48
Overall Width (IN): 1.733
Overall Width (MM): 44.00
Pulley 1 Number Of Grooves (MM): 7
Pulley 1 Outside Diameter (IN): 5.985
Pulley 1 Outside Diameter (MM): 152.000
Pulley 1 Type: Serpentine
Ring Width (MM): 30.99
Ring Width (in): 1.221
Timing Marks: Yes
Woodruff Key Included: No

适用车型

HONDA (4)

ACURA (3)
