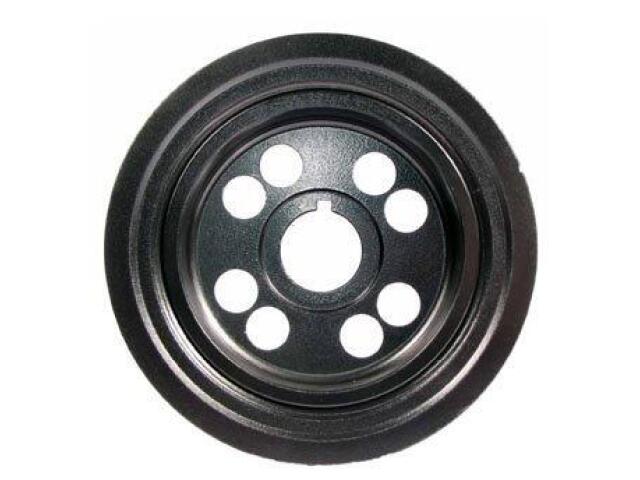

Harmonic Balancer
MERCURY : PB1553N

Counterweight Balance: Neutral, no counterweight
Crank Bore (IN): 1.182
Crank Bore (MM): 30.01
Crank Trigger/Exciter Plate: No
Hardware Included: No
Installation Instructions Included: No
Nose Outside Diameter (IN): 1.890
Nose Outside Diameter (MM): 48.00
Number of Integrated Pulleys: 2
Outer Ring Material: Cast Iron
Overall Outside Diameter (IN): 5.886
Overall Outside Diameter (MM): 149.50
Overall Width (IN): 1.758
Overall Width (MM): 44.65
Pulley 1 Number Of Grooves (MM): 4
Pulley 1 Outside Diameter (IN): 5.512
Pulley 1 Outside Diameter (MM): 140.000
Pulley 1 Type: Serpentine
Pulley 2 Number Of Grooves (MM): 4
Pulley 2 Outside Diameter (IN): 5.788
Pulley 2 Outside Diameter (MM): 147.000
Pulley 2 Type: Serpentine
Ring Width (MM): 36.50
Ring Width (in): 1.438
Timing Marks: Yes
Woodruff Key Included: No

适用车型

HYUNDAI (2)

KIA (4)
