MERCURY
PB1541N

第三方数据MERCURY : PB1541N

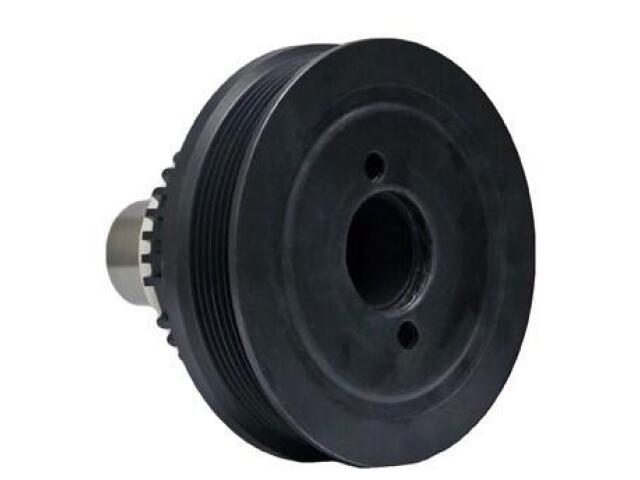

Harmonic Balancer
MERCURY : PB1541N

Bolt Hole Quantity: 2
Counterweight Balance: Neutral, no counterweight
Crank Bore (IN): 1.102
Crank Bore (MM): 27.97
Crank Trigger/Exciter Plate: Yes
Hardware Included: No
Installation Instructions Included: No
Nose Outside Diameter (IN): 1.652
Nose Outside Diameter (MM): 41.95
Number of Integrated Pulleys: 1
Outer Ring Material: Cast Iron
Overall Outside Diameter (IN): 6.103
Overall Outside Diameter (MM): 155.00
Overall Width (IN): 5.315
Overall Width (MM): 135.00
Pulley 1 Number Of Grooves (MM): 6
Pulley 1 Outside Diameter (IN): 5.768
Pulley 1 Outside Diameter (MM): 146.500
Pulley 1 Type: Serpentine
Ring Width (MM): 39.50
Ring Width (in): 1.556
Timing Marks: Yes
Woodruff Key Included: No

适用车型

FORD (4)

EXPLORER (1)

EXPLORER SPORT TRAC (1)

MUSTANG (1)

RANGER (1)

MAZDA (1)

MERCURY (1)
