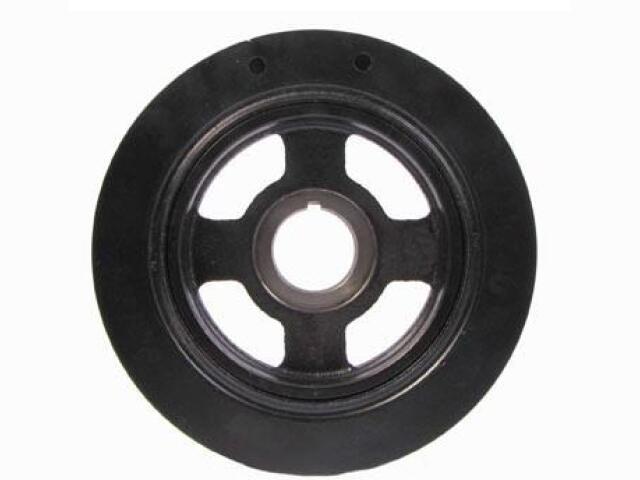

Harmonic Balancer
MERCURY : PB1528N

Counterweight Balance: Neutral, no counterweight
Crank Bore (IN): 1.182
Crank Bore (MM): 30.01
Crank Trigger/Exciter Plate: No
Hardware Included: No
Installation Instructions Included: No
Nose Outside Diameter (IN): 1.772
Nose Outside Diameter (MM): 45.00
Number of Integrated Pulleys: 1
Outer Ring Material: Cast Iron
Overall Outside Diameter (IN): 5.827
Overall Outside Diameter (MM): 148.00
Overall Width (IN): 1.465
Overall Width (MM): 37.20
Pulley 1 Number Of Grooves (MM): 6
Pulley 1 Outside Diameter (IN): 5.670
Pulley 1 Outside Diameter (MM): 144.000
Pulley 1 Type: Serpentine
Ring Width (MM): 27.99
Ring Width (in): 1.102
Timing Marks: Yes
Woodruff Key Included: No

适用车型

HYUNDAI (9)

AZERA (2)

SANTA FE (2)

SANTA FE XL (1)

SONATA (1)

ENTOURAGE (1)

GENESIS (1)

GENESIS COUPE (1)

PALISADE (1)

VERACRUZ (1)

KIA (7)

CADENZA (1)

SEDONA (3)

SORENTO (3)

AMANTI (1)

BORREGO (1)

K900 (1)

TELLURIDE (1)

GENESIS (1)

OE号码

品牌	号码
OE	10222*
