第三方数据MERCURY : PB1524N

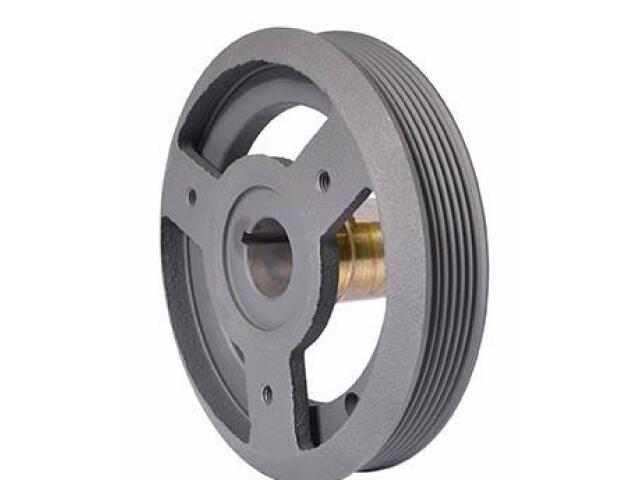

Harmonic Balancer
MERCURY : PB1524N

Bolt Hole Quantity: 3
Counterweight Balance: Neutral, no counterweight
Crank Bore (IN): 1.103
Crank Bore (MM): 28.01
Crank Trigger/Exciter Plate: No
Hardware Included: No
Installation Instructions Included: No
Nose Outside Diameter (IN): 1.532
Nose Outside Diameter (MM): 38.90
Number of Integrated Pulleys: 1
Outer Ring Material: Cast Iron
Overall Outside Diameter (IN): 6.418
Overall Outside Diameter (MM): 163.00
Overall Width (IN): 2.235
Overall Width (MM): 56.75
Pulley 1 Number Of Grooves (MM): 6
Pulley 1 Outside Diameter (IN): 6.300
Pulley 1 Outside Diameter (MM): 160.000
Pulley 1 Type: Serpentine
Ring Width (MM): 31.65
Ring Width (in): 1.247
Timing Marks: Yes
Woodruff Key Included: No

适用车型

SAAB (1)

BUICK (3)

CHEVROLET (4)

SATURN (3)
