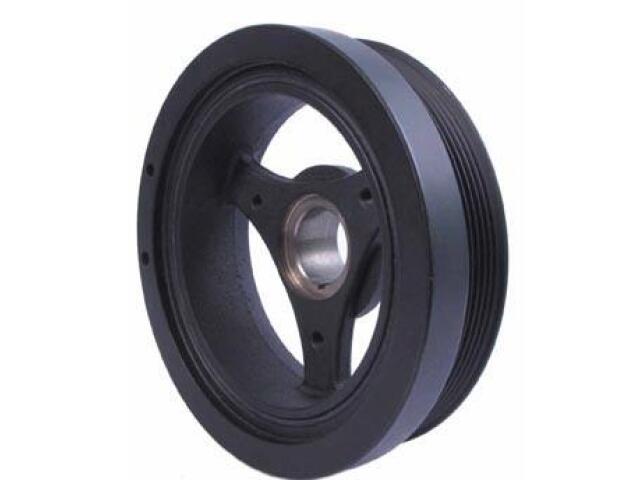

Harmonic Balancer
MERCURY : PB1516N

Bolt Hole Quantity: 3
Counterweight Balance: Neutral, no counterweight
Crank Bore (IN): 1.249
Crank Bore (MM): 31.71
Crank Trigger/Exciter Plate: No
Hardware Included: No
Installation Instructions Included: No
Nose Outside Diameter (IN): 1.876
Nose Outside Diameter (MM): 47.65
Number of Integrated Pulleys: 1
Outer Ring Material: Cast Iron
Overall Outside Diameter (IN): 7.048
Overall Outside Diameter (MM): 179.00
Overall Width (IN): 2.327
Overall Width (MM): 59.10
Pulley 1 Number Of Grooves (MM): 6
Pulley 1 Outside Diameter (IN): 6.575
Pulley 1 Outside Diameter (MM): 167.000
Pulley 1 Type: Serpentine
Ring Width (MM): 46.79
Ring Width (in): 1.843
Timing Marks: No
Woodruff Key Included: No

适用车型

FORD (4)

CROWN VICTORIA (1)

E-150 (1)

E-250 (1)

F-150 (1)

LINCOLN (2)

MERCURY (1)
