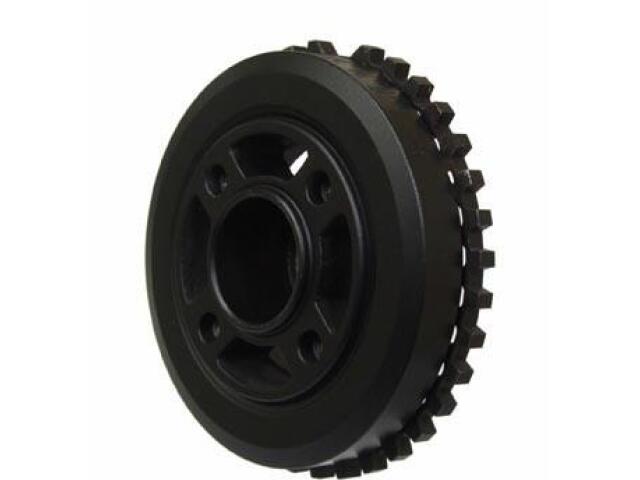

Harmonic Balancer
MERCURY : PB1488N

Bolt Hole Quantity: 4
Counterweight Balance: Neutral, no counterweight
Crank Bore (IN): 1.249
Crank Bore (MM): 31.71
Crank Trigger/Exciter Plate: Yes
Hardware Included: No
Installation Instructions Included: No
Nose Outside Diameter (IN): 1.876
Nose Outside Diameter (MM): 47.65
Outer Ring Material: Cast Iron
Overall Outside Diameter (IN): 5.709
Overall Outside Diameter (MM): 145.00
Overall Width (IN): 3.258
Overall Width (MM): 82.75
Ring Width (MM): 25.98
Ring Width (in): 1.023
Timing Marks: Yes
Woodruff Key Included: No

适用车型

FORD (2)

MAZDA (1)

MERCURY (1)
