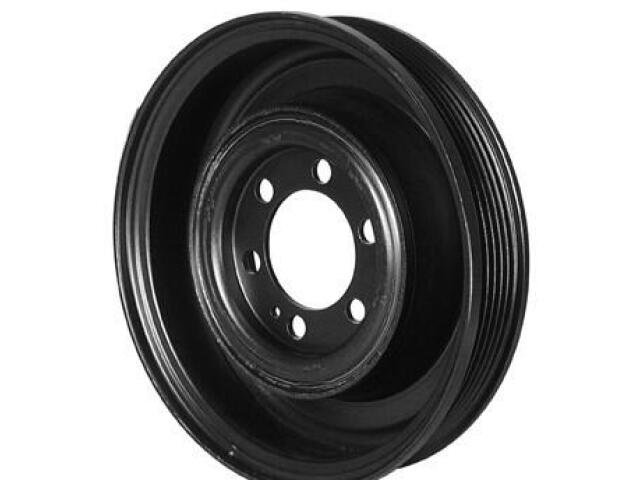

Harmonic Balancer
MERCURY : PB1472N

Bolt Hole Quantity: 6
Counterweight Balance: Neutral, no counterweight
Crank Bore (IN): 1.654
Crank Bore (MM): 42.00
Crank Trigger/Exciter Plate: No
Hardware Included: No
Installation Instructions Included: No
Nose Outside Diameter (MM): 0.00
Number of Integrated Pulleys: 1
Outer Ring Material: Cast Iron
Overall Outside Diameter (IN): 6.536
Overall Outside Diameter (MM): 166.00
Overall Width (IN): 1.378
Overall Width (MM): 35.00
Pulley 1 Number Of Grooves (MM): 6
Pulley 1 Outside Diameter (IN): 6.103
Pulley 1 Outside Diameter (MM): 155.000
Pulley 1 Type: Serpentine
Ring Width (MM): 37.13
Ring Width (in): 1.462
Timing Marks: Yes
Woodruff Key Included: No

适用车型

SATURN (1)

OE号码

品牌	号码
OE	948390*
