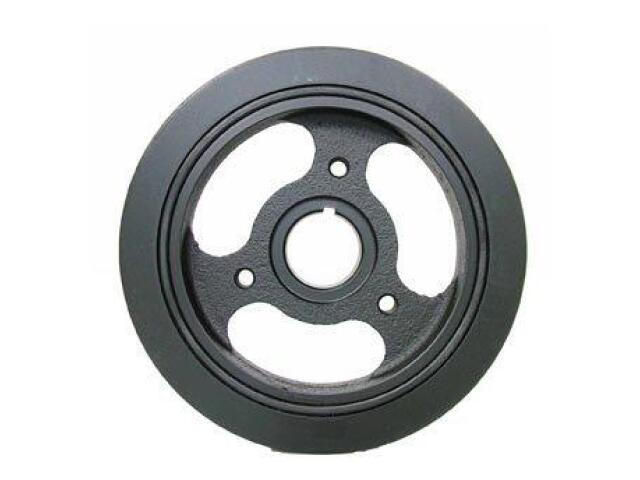

Harmonic Balancer
MERCURY : PB1184N

Bolt Hole Quantity: 3
Counterweight Balance: Neutral, no counterweight
Crank Bore (IN): 1.249
Crank Bore (MM): 31.71
Crank Trigger/Exciter Plate: No
Hardware Included: No
Installation Instructions Included: No
Nose Outside Diameter (IN): 1.876
Nose Outside Diameter (MM): 47.65
Number of Integrated Pulleys: 1
Outer Ring Material: Cast Iron
Overall Outside Diameter (IN): 6.457
Overall Outside Diameter (MM): 164.00
Overall Width (IN): 1.733
Overall Width (MM): 44.00
Pulley 1 Number Of Grooves (MM): 6
Pulley 1 Outside Diameter (IN): 6.272
Pulley 1 Outside Diameter (MM): 159.300
Pulley 1 Type: Serpentine
Ring Width (MM): 27.18
Ring Width (in): 1.071
Timing Marks: Yes
Woodruff Key Included: No

适用车型

FORD (2)

MAZDA (3)

LINCOLN (1)

MERCURY (2)
