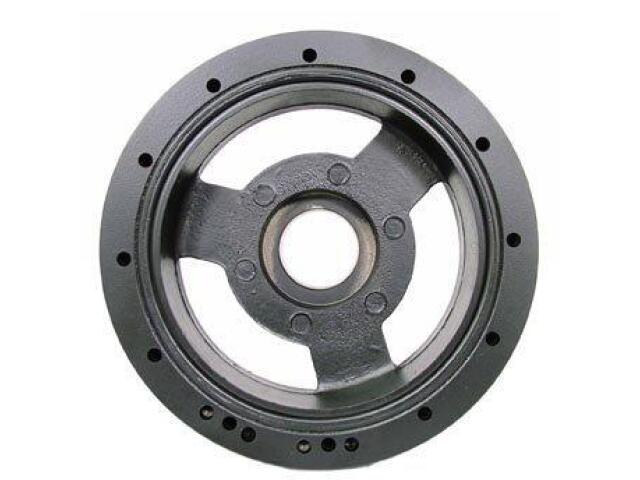

Harmonic Balancer
MERCURY : PB1117N

Counterweight Balance: Neutral, no counterweight
Crank Bore (IN): 1.481
Crank Bore (MM): 37.60
Crank Trigger/Exciter Plate: No
Hardware Included: No
Installation Instructions Included: Yes
Nose Outside Diameter (IN): 2.126
Nose Outside Diameter (MM): 54.00
Number of Integrated Pulleys: 2
Outer Ring Material: Cast Iron
Overall Outside Diameter (IN): 7.520
Overall Outside Diameter (MM): 191.00
Overall Width (IN): 2.823
Overall Width (MM): 71.70
Pulley 1 Number Of Grooves (MM): 6
Pulley 1 Outside Diameter (IN): 7.363
Pulley 1 Outside Diameter (MM): 187.000
Pulley 1 Type: Serpentine
Pulley 2 Number Of Grooves (MM): 4
Pulley 2 Outside Diameter (IN): 7.087
Pulley 2 Outside Diameter (MM): 180.000
Pulley 2 Type: Serpentine
Ring Width (MM): 61.49
Ring Width (in): 2.421
Timing Marks: No
Woodruff Key Included: No

适用车型

CADILLAC (1)

CHEVROLET (3)

PONTIAC (1)
