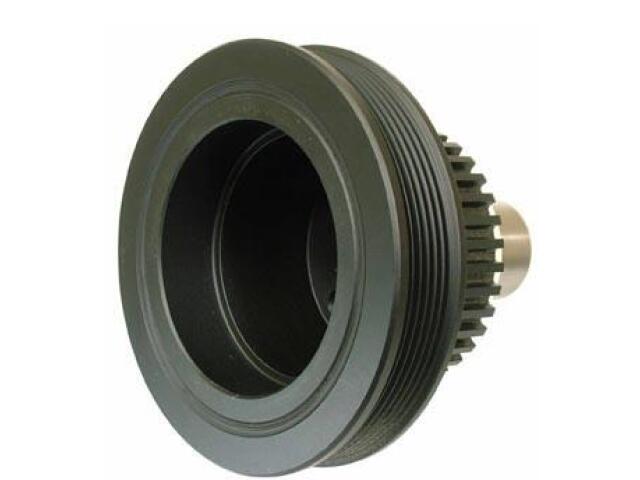

Harmonic Balancer
MERCURY : PB1103N

Bolt Hole Quantity: 2
Counterweight Balance: Neutral, no counterweight
Crank Bore (IN): 1.101
Crank Bore (MM): 27.96
Crank Trigger/Exciter Plate: Yes
Hardware Included: No
Installation Instructions Included: No
Nose Outside Diameter (IN): 1.654
Nose Outside Diameter (MM): 42.00
Number of Integrated Pulleys: 1
Outer Ring Material: Cast Iron
Overall Outside Diameter (IN): 5.788
Overall Outside Diameter (MM): 147.00
Overall Width (IN): 5.315
Overall Width (MM): 135.00
Pulley 1 Number Of Grooves (MM): 6
Pulley 1 Outside Diameter (IN): 5.788
Pulley 1 Outside Diameter (MM): 147.000
Pulley 1 Type: Serpentine
Ring Width (MM): 32.99
Ring Width (in): 1.299
Timing Marks: Yes
Woodruff Key Included: No

适用车型

MAZDA (1)
