SP7191M

第三方数据SPECTRA PREMIUM : SP7191M

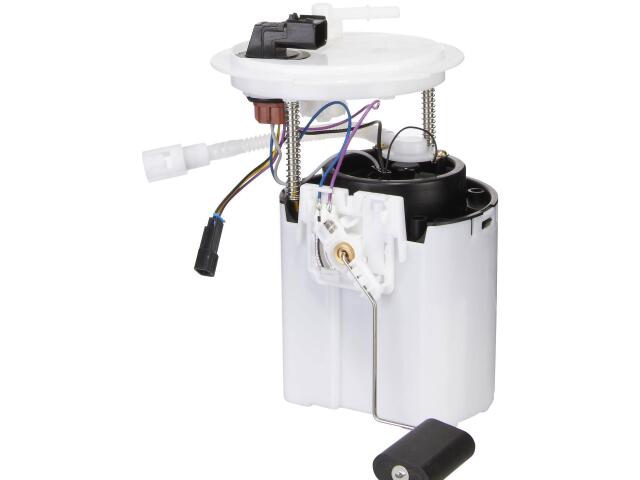

Fuel Pump & Housing Assembly
SPECTRA PREMIUM : SP7191M

Compatible Fuels: Gas
Connector Gender: Male
Connector Shape: Rectangular
Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Hardware Included: Yes
Height (IN): 9.1
In Tank: Yes
Inline Pump: No
Max Free Flow (Gph): 56.3
Max Pressure Range (Psi): 137.8
Min Free Flow Rate (Gph): 47
Min Pressure Range (Psi): 87
Negative Ground: Yes
Outlet Diameter (IN): 5/16
Outlet Quantity: 1
Outlet Type: Quick Connect
Pin Count: 6
Pin Shape: Flat
Pump Type: Turbine
Resistance Empty (Ohms): 220
Resistance Full (Ohms): 21
Rheostat Range (Ohms): 220-21
Strainer Included: Yes
Volts: 12 vDC
Wiring Harness Included: No

适用车型

CHRYSLER (1)

OE号码

品牌	号码
OE	SP7191M:*
OE	5101803A*

品牌	号码
OE	68028057A*

品牌	号码
OE	68028057A*
