GM GENUINE
84681987

第三方数据GM GENUINE : 84681987

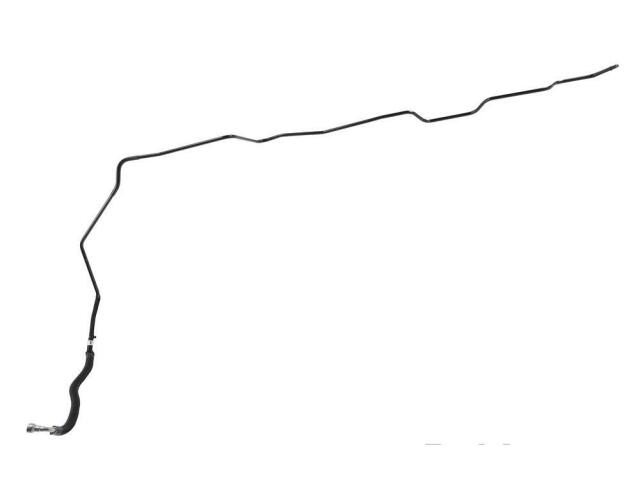

Fuel Line / Hose
GM GENUINE : 84681987

End 1 Inside Diameter (IN): 0.26
End 1 Inside Diameter (MM): 6.55
End 1 Outside Diameter (IN): 0.37
End 1 Outside Diameter (MM): 9.5
End 1 Type: Straight
End 2 Inside Diameter (IN): 0.61
End 2 Inside Diameter (MM): 15.52
End 2 Outside Diameter (IN): 0.8
End 2 Outside Diameter (MM): 20.22
End 2 Type: Female Quick Connect
Gasket or Seal Included: No
Material: Stainless Steel/Plastic
Outside Diameter (IN): 0.39
Outside Diameter (MM): 9.91
Shape: Molded Assembly

适用车型

CADILLAC (2)

CHEVROLET (1)

GMC (1)
