GM GENUINE
25950773

第三方数据GM GENUINE : 25950773

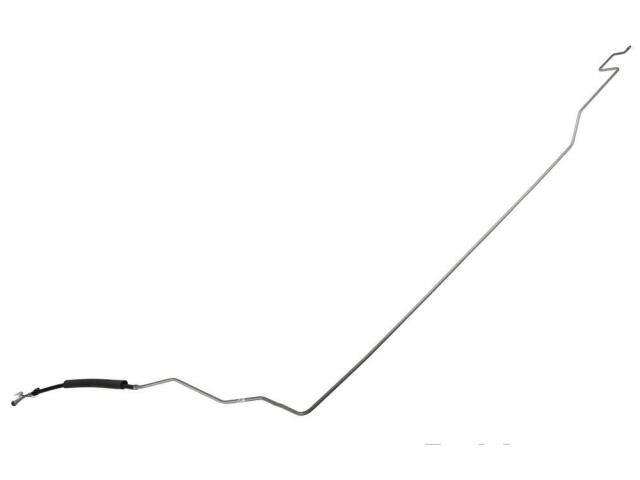

Fuel Line / Hose
GM GENUINE : 25950773

End 1 Inside Diameter (IN): 0.38
End 1 Inside Diameter (MM): 9.65
End 1 Outside Diameter (IN): 0.788
End 1 Outside Diameter (MM): 20.01
End 1 Type: Female Quick-Connect
End 2 Inside Diameter (IN): 0.248
End 2 Inside Diameter (MM): 6.3
End 2 Outside Diameter (IN): 0.375
End 2 Outside Diameter (MM): 9.53
End 2 Type: Male Quick-Connect
Gasket or Seal Included: No
Line 2 Inside Diameter (IN): 0.32
Line 2 Inside Diameter (MM): 8.12
Line Inside Diameter (IN): 0.32
Line Inside Diameter (MM): 8.13
Material: Steel Tubing, braided Hose
Shape: Molded Assembly
Wall Thickness (IN): 0.028
Wall Thickness (MM): 0.7

适用车型

BUICK (1)
