GM GENUINE
24245480

第三方数据GM GENUINE : 24245480

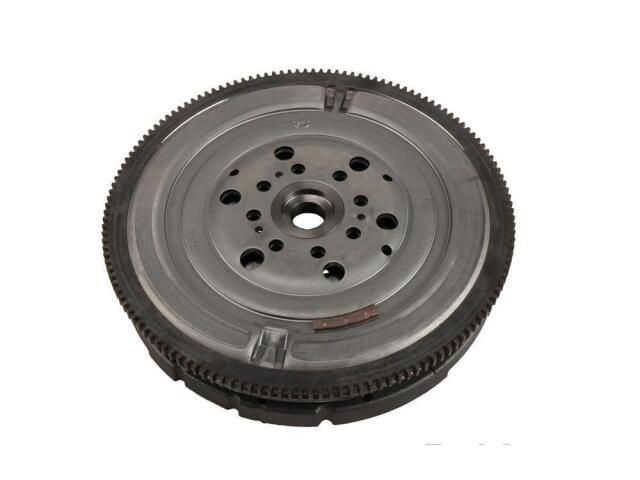

Flywheel
GM GENUINE : 24245480

Cover Pressure Plate Mounting Bolt Hole Diameter (IN): 10.94
Cover Pressure Plate Mounting Bolt Hole Diameter (MM): 278
Cover Pressure Plate Mounting Hole To Flywheel Quantity: 6
Dowel Pin Quantity Cover To Flywheel: 3
Flywheel To Crankshaft Bolt Circle Diameter (IN): 3.15
Flywheel To Crankshaft Bolt Circle Diameter (MM): 80
Friction Surface Configuration: Recessed
Material: Iron
Mount Hole Diameter (IN): 0.43in
Mount Hole Diameter (MM): 10.8mm
Mount Hole Quantity: 8
Mounting Hole Diameter (IN): 0.43
Mounting Hole Diameter (MM): 10.8
Mounting Hole Quantity: 8
Ring Gear Outside Diameter (IN): 11.93
Ring Gear Outside Diameter (MM): 303
Thickness At Teeth (IN): 2.37
Thickness At Teeth (mm): 60.1
Type: Dual Mass

适用车型

CADILLAC (1)

CHEVROLET (1)
