GM GENUINE
12582964

第三方数据GM GENUINE : 12582964

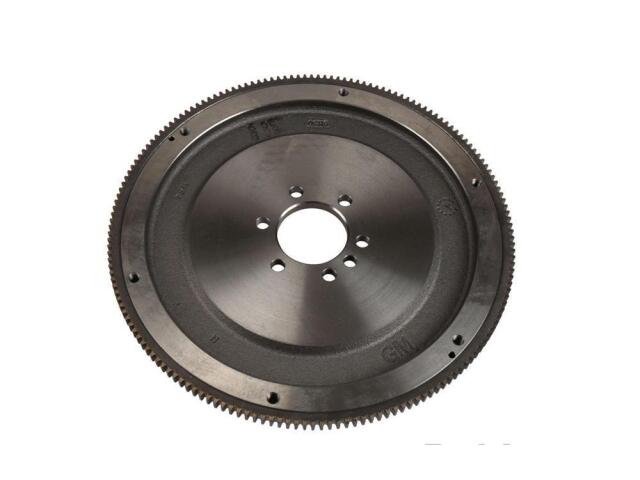

Flywheel
GM GENUINE : 12582964

Clutch Diameter (IN): 11.500"
Cover Pressure Plate Mounting Hole Diameter (in): 0.44
Cover Pressure Plate Mounting Hole Diameter (mm): 11.05
Cover Pressure Plate Mounting Hole To Flywheel Quantity: 6
Dowel Pin Diameter Cover To Flywheel (IN): 0.25
Dowel Pin Diameter Cover To Flywheel (mm): 6.38
Dowel Pin Quantity Flywheel To Crank: 2
Flywheel To Crankshaft Bolt Circle Diameter (IN): 3.54
Flywheel To Crankshaft Bolt Circle Diameter (MM): 90
Friction Surface Configuration: Flat
Material: Iron
Mount Hole Diameter (IN): 0.44in
Mount Hole Diameter (MM): 11.05mm
Mount Hole Quantity: 6
Mounting Hole Diameter (IN): 0.47
Mounting Hole Diameter (MM): 12
Mounting Hole Quantity: 6
Outside Diameter (IN): 14
Ring Gear Outside Diameter (IN): 13.43
Ring Gear Outside Diameter (MM): 341
Thickness At Teeth (IN): 0.13
Thickness At Teeth (mm): 3.38
Tooth Quantity: 168
Type: Single Mass

适用车型

CHEVROLET (2)

GMC (2)
