GM GENUINE
12561680

第三方数据GM GENUINE : 12561680

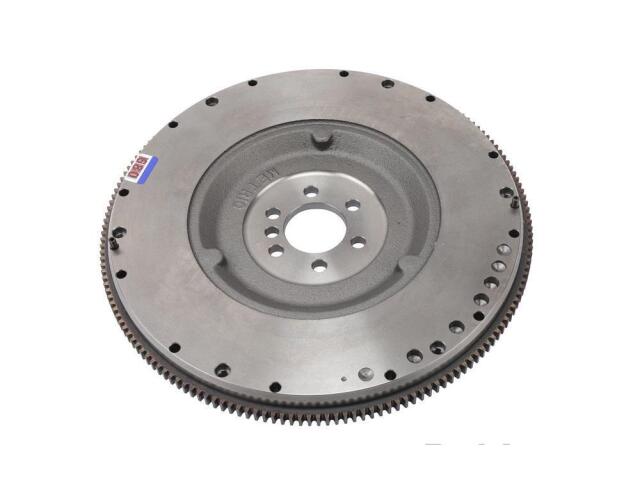

Flywheel
GM GENUINE : 12561680

Cover Pressure Plate Mounting Hole Diameter (in): 0.39
Cover Pressure Plate Mounting Hole Diameter (mm): 10
Cover Pressure Plate Mounting Hole To Flywheel Quantity: 6
Dowel Pin Diameter Cover To Flywheel (IN): 0.25
Dowel Pin Diameter Cover To Flywheel (mm): 6.38
Dowel Pin Diameter Flywheel To Crank (in): 0.47
Dowel Pin Diameter Flywheel To Crank (mm): 12
Dowel Pin Quantity Flywheel To Crank: 2
Flywheel To Crankshaft Bolt Circle Diameter (IN): 3.15
Flywheel To Crankshaft Bolt Circle Diameter (MM): 80
Friction Surface Configuration: Flat
Material: Iron
Mount Hole Diameter (IN): 0.47in
Mount Hole Diameter (MM): 12mm
Mount Hole Quantity: 6
Mounting Hole Diameter (IN): 0.47
Mounting Hole Diameter (MM): 12
Mounting Hole Quantity: 6
Ring Gear Outside Diameter (IN): 14.09
Ring Gear Outside Diameter (MM): 358
Thickness At Teeth (IN): 1.04
Thickness At Teeth (mm): 26.44
Tooth Quantity: 168
Type: Single Mass

适用车型

CHEVROLET (5)

GMC (5)
