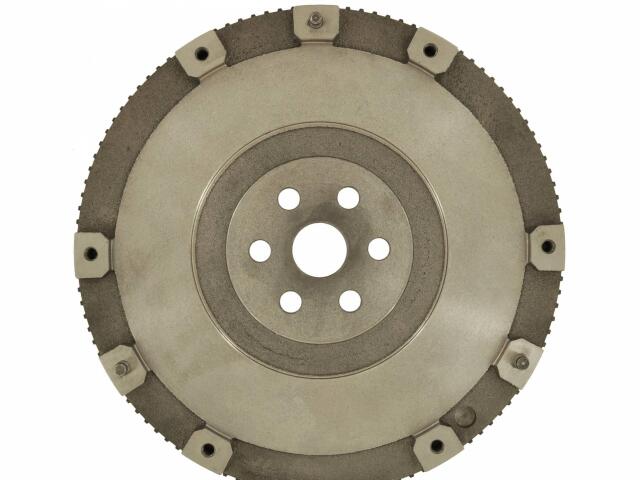

Flywheel
AMS AUTOMOTIVE : 167918

Counter Bore Depth (IN): 0.1
Counter Bore Diameter (PP) (IN): 5.8
Cover Pressure Plate Mounting Bolt Circle Diameter (IN): 10.24
Cover Pressure Plate Mounting Hole To Flywheel Quantity: 6
Crank Bolt Circle Diameter (IN): 2.76
Crank Center Hole Diameter (IN): 1.26
Crank Mating Surface to PP Mounting Surface (IN): 1.078
Dowel Pin Diameter Cover To Flywheel (IN): 0.319
Flywheel Step (IN): -0.3
Flywheel Type: Solid
Friction Surface Configuration: Raised
Mounting Hole Diameter (IN): 0.5
Mounting Hole Quantity: 6
Pressure Plate Bolt Hole Thread Size: M8 x 1.25
Ring Gear Outside Diameter (IN): 11.26
Tooth Quantity: 112

适用车型

MAZDA (1)
