AMS AUTOMOTIVE
167917

第三方数据AMS AUTOMOTIVE : 167917

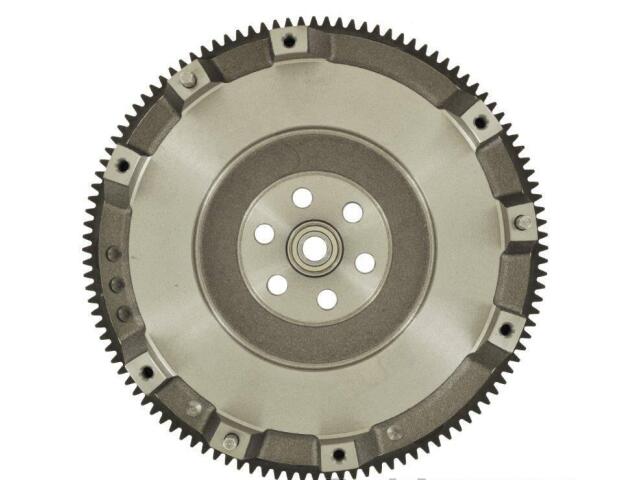

Flywheel
AMS AUTOMOTIVE : 167917

Counter Bore Depth (IN): 0.453
Counter Bore Diameter (PP) (IN): 5.83
Cover Pressure Plate Mounting Bolt Circle Diameter (IN): 9.675
Cover Pressure Plate Mounting Hole To Flywheel Quantity: 6
Crank Bolt Circle Diameter (IN): 2.563
Crank Center Hole Diameter (IN): 1.378
Crank Mating Surface to PP Mounting Surface (IN): 1.717
Dowel Pin Diameter Cover To Flywheel (IN): 0.315
Flywheel Step (IN): -0.789
Flywheel Type: Solid
Friction Surface Configuration: Raised
Mounting Hole Diameter (IN): 0.497
Mounting Hole Quantity: 6
Pressure Plate Bolt Hole Thread Size: M8 x 1.0
Ring Gear Outside Diameter (IN): 11.37
Tooth Quantity: 112

适用车型

MAZDA (1)

参考号

厂商	号码
STANDARD FLYWHEEL	91*
