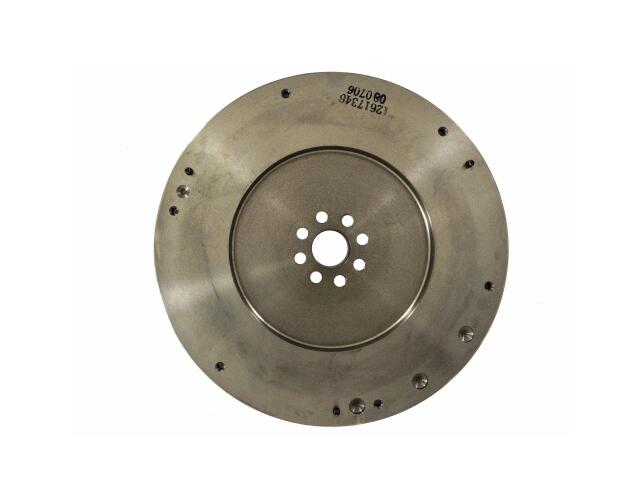

Flywheel
AMS AUTOMOTIVE : 167584

Counter Bore Depth (IN): 0.573
Counter Bore Diameter (PP) (IN): 7.52
Cover Pressure Plate Mounting Bolt Circle Diameter (IN): 11.97
Cover Pressure Plate Mounting Hole To Flywheel Quantity: 6
Crank Bolt Circle Diameter (IN): 2.475
Crank Center Hole Diameter (IN): 1.451
Crank Mating Surface to PP Mounting Surface (IN): 0.939
Dowel Pin Diameter Cover To Flywheel (IN): 0.24
Flywheel Type: Solid
Friction Surface Configuration: Flat
Mounting Hole Diameter (IN): 0.415
Mounting Hole Quantity: 8
Pressure Plate Bolt Hole Thread Size: M8 x 1.25
Ring Gear Outside Diameter (IN): 13.567
Tooth Quantity: 161

适用车型

CHEVROLET (1)

GMC (1)

参考号

厂商	号码
AUTOZONE/AMS	16758*
AUTOZONE/LUK	LFW46*
LUK AUTOMOTIVE SYSTEMS	LFW46*

厂商	号码
NEW GENERATION/AMS	16758*
PROFESSIONALS' CHOICE/AMS	16758*
RHINOPAC/AMS	16758*

厂商	号码
STANDARD FLYWHEEL	658*
WORLD CAR/AMS	16758*
