第三方数据WALKER : KIT9479026

Exhaust System Kit
WALKER : KIT9479026

[Clamp 35335] - Clamp Type: U-Bolt
[Clamp 35335] - Nut Type: Hex
[Clamp 35364] - Clamp Type: U-Bolt
[Clamp 35364] - Nut Type: Hex
[Hanger / Insulator 35460] - Color: Black
[Hanger / Insulator 35460] - Contents: Insulator
[Hanger / Insulator 35460] - Material: Rubber
[Muffler 21563] - Body Dimensions (L x W x H): 21" x 11" x 5.5"
[Muffler 21563] - Body Material: Stainless Steel
[Muffler 21563] - Finish / Material: Aluminized Steel
[Muffler 21563] - Inlet Configuration: Offset
[Muffler 21563] - Inlet Offset: 1.5
[Muffler 21563] - Muffler Type: Combination
[Muffler 21563] - Outlet Configuration: Offset
[Muffler 21563] - Overall Length: 25 in.
[Muffler 21563] - Reversible: No
[Muffler 21563] - Shape: Oval
[Muffler 21563] - Tunable: No
[Pipe / Resonator 52447] - Finish / Material: Aluminized Steel
[Pipe / Resonator 52447] - Length: 34 in.
[Pipe / Resonator 53708] - Finish / Material: Aluminized Steel
[Pipe / Resonator 53708] - Length: 28.75 in.

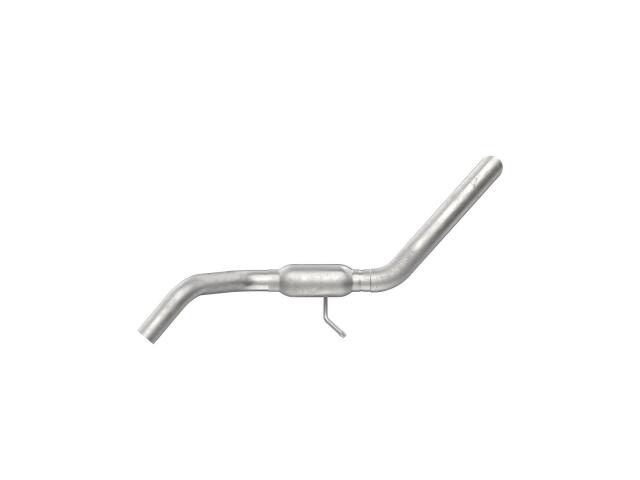

[Pipe / Resonator 54684] - Finish / Material: Aluminized Steel
[Pipe / Resonator 54684] - Length: 39.25 in.
[Pipe Flange Gasket / Seal 31372] - Gasket Type: Donut
[Pipe Flange Gasket / Seal 31372] - Material: Graphoil
[Pipe Flange Gasket / Seal 31372] - Thickness: 0.67 In.

适用车型

MERCURY (1)
