Exhaust System Kit
WALKER : KIT10368578

[Clamp 35337] - Clamp Type: U-Bolt
[Clamp 35337] - Nut Type: Hex
[Muffler 21548] - Body Dimensions (L x W x H): 16" x 8.813" x 4.25"
[Muffler 21548] - Body Material: Stainless Steel
[Muffler 21548] - Finish / Material: Aluminized Steel
[Muffler 21548] - Inlet Configuration: Offset
[Muffler 21548] - Inlet Offset: 2.625
[Muffler 21548] - Muffler Type: Combination
[Muffler 21548] - Outlet Configuration: Offset
[Muffler 21548] - Overall Length: 20 in.
[Muffler 21548] - Reversible: No
[Muffler 21548] - Shape: Oval
[Muffler 21548] - Tunable: No
[Muffler 52423] - Body Diameter: 8.813 In.
[Muffler 52423] - Body Dimensions (L x W x H): 12" x 8.813" x 4.25"
[Muffler 52423] - Body Material: Stainless Steel
[Muffler 52423] - Finish / Material: Aluminized Steel
[Muffler 52423] - Inlet Configuration: Center
[Muffler 52423] - Muffler Material: Stainless Steel
[Muffler 52423] - Muffler Shape: Oval
[Muffler 52423] - Muffler Type: Combination
[Muffler 52423] - Outlet Configuration: Offset
[Muffler 52423] - Overall Length: 19.25 in.
[Muffler 52423] - Shape: Oval
[Muffler 52425] - Body Diameter: 8.813 In.
[Muffler 52425] - Body Dimensions (L x W x H): 12" x 8.813" x 4.25"
[Muffler 52425] - Body Material: Stainless Steel
[Muffler 52425] - Finish / Material: Aluminized Steel
[Muffler 52425] - Inlet Configuration: Center
[Muffler 52425] - Muffler Material: Stainless Steel
[Muffler 52425] - Muffler Shape: Oval
[Muffler 52425] - Muffler Type: Combination
[Muffler 52425] - Outlet Configuration: Offset
[Muffler 52425] - Overall Length: 19.25 in.
[Muffler 52425] - Shape: Oval
[Pipe / Resonator 53657] - Finish / Material: Aluminized Steel
[Pipe / Resonator 53657] - Length: 33.75 in.
[Pipe / Resonator 53658] - Finish / Material: Aluminized Steel
[Pipe / Resonator 53658] - Length: 33.75 in.

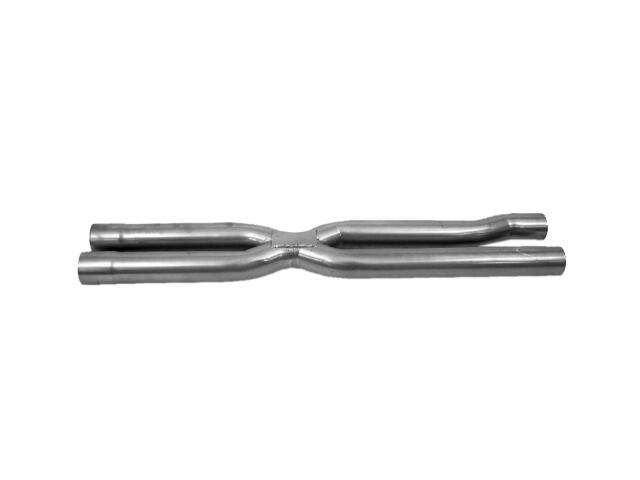

[Pipe / Resonator 54320] - Bend Type: Mandrel
[Pipe / Resonator 54320] - Finish / Material: Aluminized Steel
[Pipe / Resonator 54320] - Length: 38.625 In.
