FVP
12399032

第三方数据FVP : 12399032

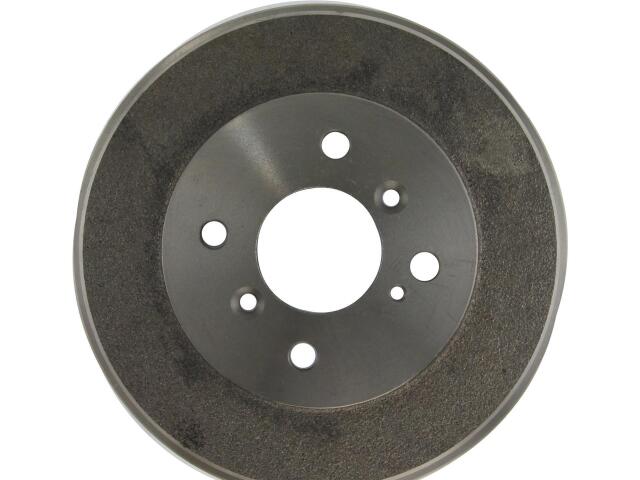

Drum
FVP : 12399032

Bolt Circle Diameter in: 4.250
Bolt Circle Diameter mm: 107.950
Bolt Hole Quantity: 4
Disc Mounting: Floating
Friction Surface Width in: 1.941
Friction Surface Width mm: 49.300
Friction Surface mm: 49.3
Height IN: 2.764
Height MM: 70.200
Hub Hole / Register in: 2.496
Hub Hole / Register mm: 63.4
Max Diameter mm: 230.2
Maximum Brake Diameter (Discard) (IN): 9.060
Maximum Brake Diameter (Discard) (MM): 230.100
Mounting Hole Diameter (IN): 0.547
Mounting Hole Diameter (MM): 13.900
Mounting Type: Floating
Nominal Diameter mm: 228.20
Nominal Drum Diameter (IN): 8.976
Nominal Drum Diameter (MM): 228.000
Number of Holes/Studs: 4
Outer Cooling Fins: No
Outer Diameter MM: 273.0
Outside Diameter (IN): 10.748
Outside Diameter (MM): 273.000
Plain / Finned: P
Stud/Bolt Circle mm: 108.0
Stud/Bolt Hole Dia. mm: 13.9

适用车型

FORD (1)
