12399031

第三方数据FVP : 12399031

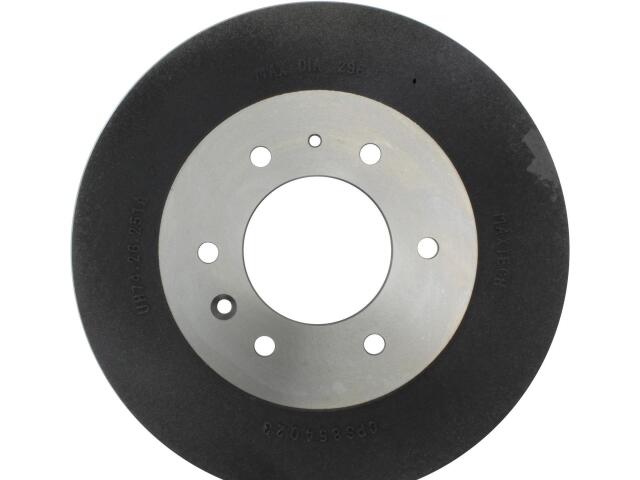

Drum
FVP : 12399031

Bolt Circle Diameter in: 5.500
Bolt Circle Diameter mm: 139.700
Bolt Hole Quantity: 6
Disc Mounting: Floating
Friction Surface Width in: 2.606
Friction Surface Width mm: 66.200
Friction Surface mm: 66.20
Height IN: 3.173
Height MM: 80.600
Hub Hole / Register in: 3.665
Hub Hole / Register mm: 93.10
Max Diameter mm: 296.50
Maximum Brake Diameter (Discard) (IN): 11.670
Maximum Brake Diameter (Discard) (MM): 296.500
Mounting Hole Diameter (IN): 0.492
Mounting Hole Diameter (MM): 12.500
Mounting Type: Floating
Nominal Diameter mm: 297.70
Nominal Drum Diameter (IN): 11.720
Nominal Drum Diameter (MM): 297.700
Number of Holes/Studs: 6
Outer Cooling Fins: No
Outer Diameter MM: 347.00
Outside Diameter (IN): 13.661
Outside Diameter (MM): 347.000
Stud/Bolt Circle mm: 139.80
Stud/Bolt Hole Dia. mm: 12.5

适用车型

FORD (1)
