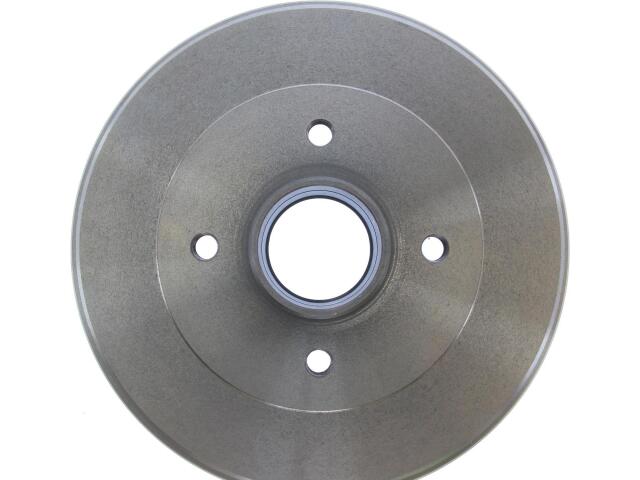

Drum
FVP : 12399013

Bolt Circle Diameter in: 3.937
Bolt Circle Diameter mm: 100.000
Bolt Hole Quantity: 4
Disc Mounting: Hub in Drum
Friction Surface Width in: 1.972
Friction Surface Width mm: 50.100
Friction Surface mm: 50.10
Height IN: 2.984
Height MM: 75.800
Hub Hole / Register in: 2.354
Hub Hole / Register mm: 59.80
Max Diameter mm: 204.45
Maximum Brake Diameter (Discard) (IN): 8.049
Maximum Brake Diameter (Discard) (MM): 204.450
Mounting Hole Diameter (MM): 12.000
Mounting Type: Hub & Drum
Nominal Diameter mm: 203.20
Nominal Drum Diameter (IN): 8.000
Nominal Drum Diameter (MM): 203.200
Number of Holes/Studs: 4
Outer Cooling Fins: No
Outer Diameter MM: 234.00
Outside Diameter (IN): 9.213
Outside Diameter (MM): 234.000
Stud Thread Pitch mm: 1.50
Stud/Bolt Circle mm: 100.00
Stud/Bolt Hole Dia. mm: 12x1.50

适用车型

NISSAN (3)

RENAULT (2)
