DURAGO
BD920186

第三方数据DURAGO : BD920186

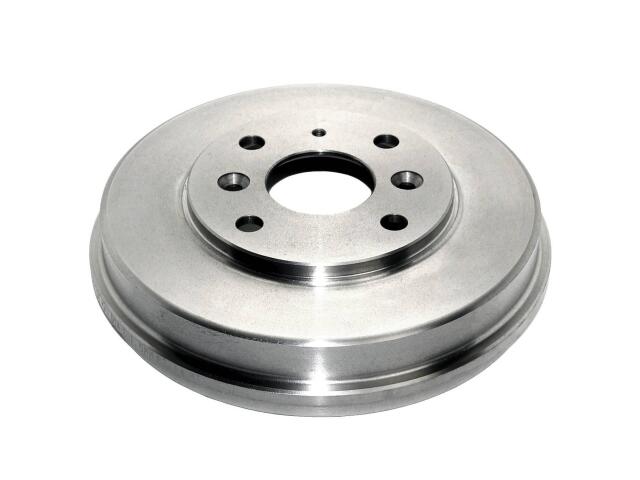

Drum
DURAGO : BD920186

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 3.94
Bolt Circle Diameter (MM): 100
Bolt Hole Diameter (IN): 0.52
Bolt Hole Diameter (MM): 13.2
Bolt Hole Quantity: 4
Brake Surface Width (IN): 1.53
Brake Surface Width (MM): 38.9
Center Hole Diameter (IN): 2.17
Center Hole Diameter (MM): 55
Construction: Full Cast
Material: Cast Iron
Maximum Brake Diameter (Discard) (IN): 7.93
Maximum Brake Diameter (Discard) (MM): 201.5
Nominal Drum Diameter (IN): 7.87
Nominal Drum Diameter (MM): 200
Outer Cooling Fins: No
Outside Diameter (IN): 9.45
Outside Diameter (MM): 240
Overall Height (IN): 2.17
Overall Height (MM): 55.2
Rust Resistant Coating: No

适用车型

MAZDA (1)

TOYOTA (2)

SCION (1)

OE号码

品牌	号码
OE	AX92018*

品牌	号码
OE	920186G:*
