DURAGO
BD920152

第三方数据DURAGO : BD920152

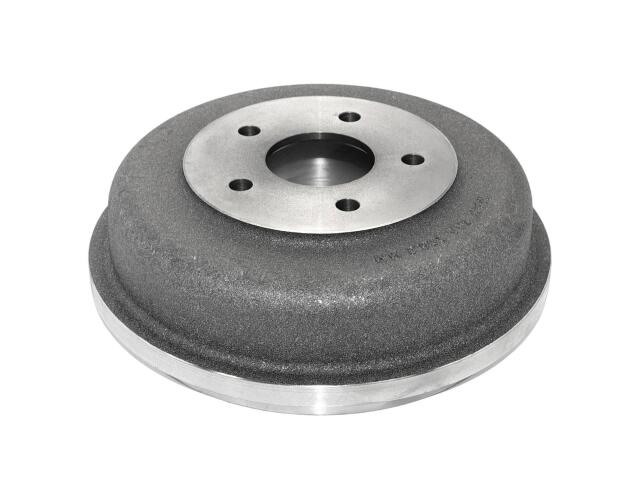

Drum
DURAGO : BD920152

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.25
Bolt Circle Diameter (MM): 108
Bolt Hole Diameter (IN): 0.51
Bolt Hole Diameter (MM): 13
Bolt Hole Quantity: 5
Brake Surface Width (IN): 2.55
Brake Surface Width (MM): 64.8
Center Hole Diameter (IN): 2.49
Center Hole Diameter (MM): 63.3
Construction: Full Cast
Material: Cast Iron
Maximum Brake Diameter (Discard) (IN): 9.06
Maximum Brake Diameter (Discard) (MM): 230.2
Nominal Drum Diameter (IN): 9
Nominal Drum Diameter (MM): 228.6
Outer Cooling Fins: No
Outside Diameter (IN): 11
Outside Diameter (MM): 279.3
Overall Height (IN): 3.52
Overall Height (MM): 89.5
Rust Resistant Coating: No

适用车型

FORD (1)

OE号码

品牌	号码
OE	AX92015*
OE	22117G:*

品牌	号码
OE	AX920152:*
OE	92015*

品牌	号码
OE	AT1Z1126*
