DURAGO
BD92013201

第三方数据DURAGO : BD92013201

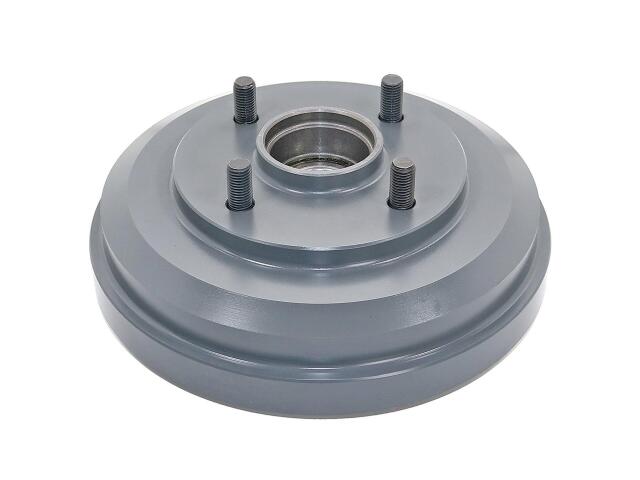

Drum
DURAGO : BD92013201

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.25
Bolt Circle Diameter (MM): 108
Bolt Hole Quantity: 4
Bolt Size (MM): M12 x 1.5
Brake Surface Width (IN): 1.77
Brake Surface Width (MM): 45
Center Hole Diameter (IN): 2.49
Center Hole Diameter (MM): 63.3
Construction: Full Cast
Material: Cast Iron
Maximum Brake Diameter (Discard) (IN): 8.04
Maximum Brake Diameter (Discard) (MM): 204.3
Nominal Drum Diameter (IN): 7.99
Nominal Drum Diameter (MM): 203
Outer Cooling Fins: No
Outside Diameter (IN): 9.41
Outside Diameter (MM): 238.9
Overall Height (IN): 3.21
Overall Height (MM): 81.5
Rust Resistant Coating: Yes

适用车型

FORD (1)

OE号码

品牌	号码
OE	BD920132-0*

品牌	号码
OE	AX920132*
