DURAGO
BD920126

第三方数据DURAGO : BD920126

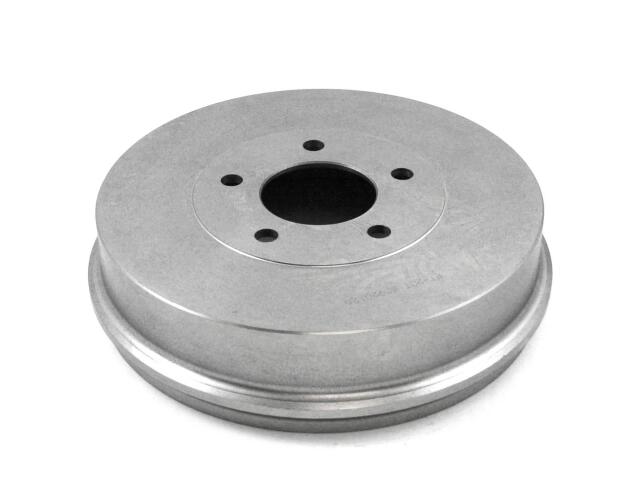

Drum
DURAGO : BD920126

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.5
Bolt Circle Diameter (MM): 114.3
Bolt Hole Diameter (IN): 0.54
Bolt Hole Diameter (MM): 13.7
Bolt Hole Quantity: 5
Brake Surface Width (IN): 2.4
Brake Surface Width (MM): 60.9
Center Hole Diameter (IN): 2.83
Center Hole Diameter (MM): 72
Construction: Full Cast
Material: Cast Iron
Maximum Brake Diameter (Discard) (IN): 10.09
Maximum Brake Diameter (Discard) (MM): 256.3
Nominal Drum Diameter (IN): 10.01
Nominal Drum Diameter (MM): 254.3
Outer Cooling Fins: No
Outside Diameter (IN): 11.69
Outside Diameter (MM): 297
Overall Height (IN): 2.83
Overall Height (MM): 72
Rust Resistant Coating: No

适用车型

FORD (1)

MAZDA (1)

MERCURY (1)

OE号码

品牌	号码
OE	AX92012*
OE	92012*

品牌	号码
OE	8L8Z1126*
OE	ZZC12625*

品牌	号码
OE	ZZC126251*
