DURAGO
BD920104

第三方数据DURAGO : BD920104

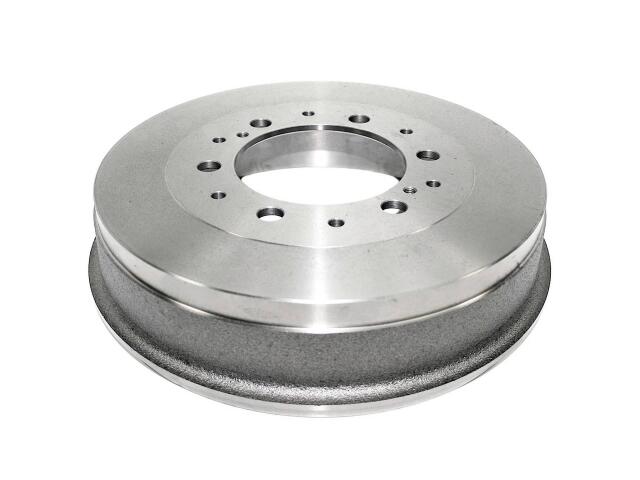

Drum
DURAGO : BD920104

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 5.5
Bolt Circle Diameter (MM): 139.7
Bolt Hole Diameter (IN): 0.57
Bolt Hole Diameter (MM): 14.4
Bolt Hole Quantity: 6
Brake Surface Width (IN): 2.43
Brake Surface Width (MM): 61.7
Center Hole Diameter (IN): 4.25
Center Hole Diameter (MM): 108
Construction: Full Cast
Material: Cast Iron
Maximum Brake Diameter (Discard) (IN): 10.08
Maximum Brake Diameter (Discard) (MM): 256
Nominal Drum Diameter (IN): 10
Nominal Drum Diameter (MM): 254
Outer Cooling Fins: No
Outside Diameter (IN): 12.05
Outside Diameter (MM): 306
Overall Height (IN): 2.89
Overall Height (MM): 73.3
Rust Resistant Coating: No

适用车型

TOYOTA (1)

TACOMA (3)

2.7L L4 (19)

3.5L V6 (8)

4.0L V6 (11)

OE号码

品牌	号码
OE	92010*

品牌	号码
OE	AX92010*

品牌	号码
OE	424310406*
