DURAGO
BD920100

第三方数据DURAGO : BD920100

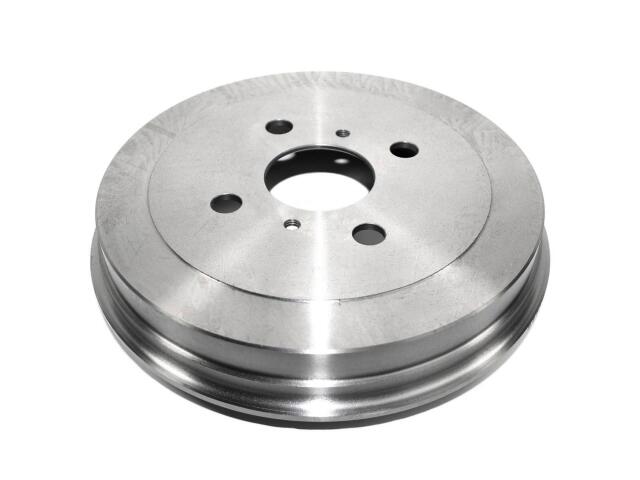

Drum
DURAGO : BD920100

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 3.94
Bolt Circle Diameter (MM): 100
Bolt Hole Diameter (IN): 0.58
Bolt Hole Diameter (MM): 14.7
Bolt Hole Quantity: 4
Brake Surface Width (IN): 1.62
Brake Surface Width (MM): 41.1
Center Hole Diameter (IN): 2.17
Center Hole Diameter (MM): 55
Construction: Full Cast
Material: Cast Iron
Maximum Brake Diameter (Discard) (IN): 7.91
Maximum Brake Diameter (Discard) (MM): 201
Nominal Drum Diameter (IN): 7.87
Nominal Drum Diameter (MM): 199.9
Outer Cooling Fins: No
Outside Diameter (IN): 9.53
Outside Diameter (MM): 242
Overall Height (IN): 2.05
Overall Height (MM): 52.1
Rust Resistant Coating: No

适用车型

SCION (2)

OE号码

品牌	号码
OE	92010*
OE	AX92010*

品牌	号码
OE	424314701*

品牌	号码
OE	424315202*
