DURAGO
BD80118

第三方数据DURAGO : BD80118

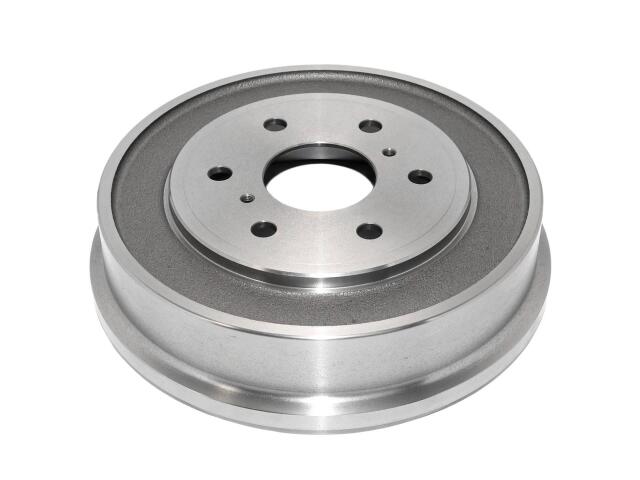

Drum
DURAGO : BD80118

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 5.5
Bolt Circle Diameter (MM): 139.7
Bolt Hole Diameter (IN): 0.65
Bolt Hole Diameter (MM): 16.5
Bolt Hole Quantity: 6
Brake Surface Width (IN): 2.99
Brake Surface Width (MM): 75.9
Center Hole Diameter (IN): 3.1
Center Hole Diameter (MM): 78.7
Construction: Full Cast
Material: Cast Iron
Maximum Brake Diameter (Discard) (IN): 11.67
Maximum Brake Diameter (Discard) (MM): 296.5
Nominal Drum Diameter (IN): 11.61
Nominal Drum Diameter (MM): 295
Outer Cooling Fins: No
Outside Diameter (IN): 13.2
Outside Diameter (MM): 335.2
Overall Height (IN): 3.79
Overall Height (MM): 96.3
Rust Resistant Coating: No

适用车型

CHEVROLET (2)

SILVERADO 1500 (4)

SILVERADO 1500 CLASSIC (4)

GMC (2)

SIERRA 1500 (4)

SIERRA 1500 CLASSIC (4)

OE号码

品牌	号码
OE	AX8011*
OE	12626*

品牌	号码
OE	1913337*

品牌	号码
OE	8905914*
